Palmgren

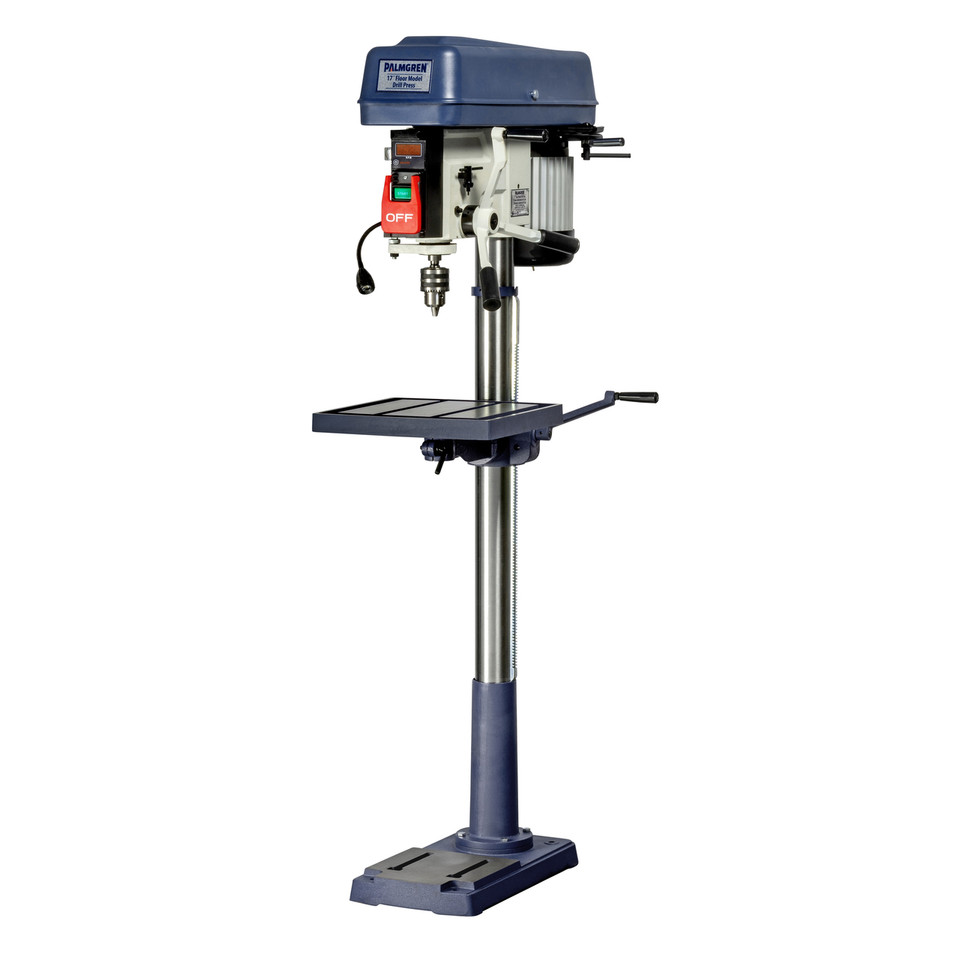

Palmgren 9680177 16-Speed Floor Step Pulley Drill Press | 17" Swing | 138 - 3476 RPM | 1 HP

$1,625.00
SKU:
9680177
Shipping:
Calculated at Checkout
Weight:
216.00 LBS
UPC:
726896801773
Adding to cart… The item has been added
Description


Palmgren's step pulley drill presses are substantially constructed to provide a solid base for all your drilling operations, and offer a greater range of spindle speeds than any others in their class. They have the weight and rigidity to maintain the built-in tight tolerances required for metalworking applications.

Palmgren 9680177 16-Speed Floor Drill Press is a powerful and versatile machine built for precision and performance. With a 17" swing and a 1 HP motor, it’s designed to handle a wide range of drilling tasks—from light-duty work to more demanding jobs in wood, metal, and plastics. This drill press features a 16-speed step pulley system, offering a wide RPM range from 138 to 3476. Whether you're working with soft materials or tougher metals, you can easily adjust the speed to match your project needs. The floor-standing design provides added stability and capacity for larger workpieces.

Type: Floor Step Pulley Drill Press | AMPS: 10.2/5.1 | Capacity Cast Iron (in.): 7/8 | Drill Press Model: Floor Model | Drill Press Type: Step Pulley | Maximum Spindle to Table (in.): 25 | Motor HP: 1 | Overall Dimensions (in.): 68 x 15-1/2 x 28 | Phase: Single | RPM: 138-3476 | Spindle Taper: MT2/JT3 | Spindle Travel (in.): 5 | Swing (in.): 17 | Table Dimensions (in.): 14-3/8 x14-3/8 | Table Slots (in.): 5/8 | Voltage: 120/240

Features:

  • Fully enclosed spindle with spaced bearings for maximum spindle support and accurate drilling operations
  • Maximum spindle run out of 0 0005"
  • Extended quill/spindle travel ideal for deep hole applications
  • LED readout for spindle speeds
  • Quick change vertical depth stop for accurate, repeatable feed length
  • Includes chuck with key and arbor
  • Rack and pinion table raiser
  • Table tilts 45 degrees right and left and rotates 360 degrees around the column
  • Front mounted industrial paddle type power switch

industrial-tools-parts-breakdown.pngLooking for more information about Palmgren Floor Drill PressesClick here to view the Catalog.

Need help selecting the correct Palmgren Floor Drill Press for your application? Please call (800) 608-5210 or email info@intlairtool.com

Specifications
Type:
Floor Step Pulley Drill Press
AMPS:
10.2/5.1
Capacity Cast Iron (in.):
7/8
Drill Press Model:
Floor Model
Drill Press Type:
Step Pulley
Maximum Spindle to Table (in.):
25
Motor HP:
1
Overall Dimensions (in.):
68 x 15-1/2 x 28
Phase:
Single
RPM:
138-3476
Spindle Taper:
MT2/JT3
Spindle Travel (in.):
5
Swing (in.):
17
Table Dimensions (in.):
14-3/8 x14-3/8
Table Slots (in.):
5/8
Voltage:
120/240
Warranty Information
3 Year warranty against defects in materials and workmanship.
