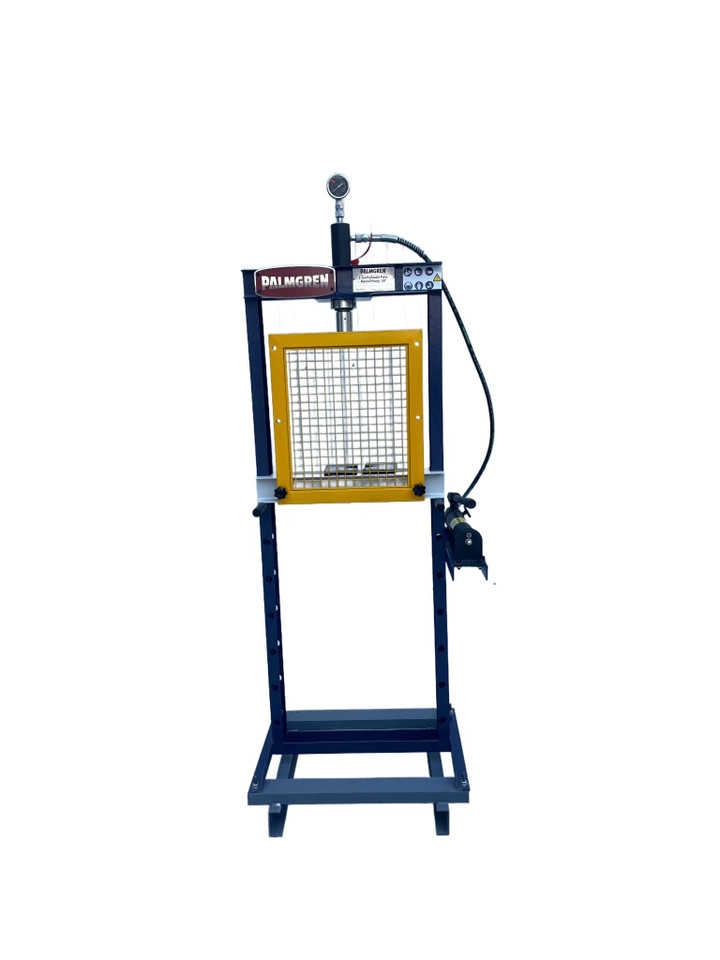

Palmgren 9661618 5 Ton H-Frame Hydraulic Press is a powerful and compact solution for a wide range of pressing, bending, and straightening applications. Designed for both industrial and workshop use, this press features a 60" durable steel frame and operates with a manual hydraulic pump to deliver consistent 5-ton pressure output. The open-sided H-frame design ensures easy loading and positioning of workpieces, making it ideal for precision work. Its 20" x 26" base size provides a stable footprint for secure operation, while the adjustable working height accommodates different materials and tasks. Built for long-lasting performance, the press is perfect for maintenance shops, fabrication tasks, metal forming, and assembly jobs.
Type: Hydraulic Press | Application: Fabrication | Base Dimension (in.): 20 x 26 | Bed Height (in.): 3.5 | Bed Width (in.): 19.5 | Color: Blue | Cylinder Type: Manual Hydraulic | H-frame Press Type: Electronic Pump | Lever Ratio: 400/1 | Max Pressure (Tons): 5 | Max Distance Ram To Table: 38.4 | Overall Dimensions (in.): 30 x 20 x 65 | Press Type: H-frame Presses | Ram Diameter (in.): 1.57 | Throat Capacity (in.): 19.7 x 14.2
Features:
- Pressure gauge for direct pressure readings
- Easily adjustable table for quick height changes between applications
- Holes in side frames allow for insertion of long material
- Hand operation for economic performance
- Efficient hand pump is conveniently located for reduced operator fatigue
- Fully-welded heavy steel plate frame for maximum rigidity
- Factory preset relief valve to prevent exceeding maximum pressure capacity
- By-pass hole prevents excessive ram extension
- Rapid ram return starts as soon as release valve is opened and may be stopped at any point by closing the valve
- Single acting cylinder design for improved operation
- Table Weight Capacity: 500lbs
- Adj. between Table Pin to Holes: 4.72 in
- Distance between channels: 3.39 in
- V-Block Weight: 6.6 lbs
Looking for more information about Palmgren Hydraulic Presss? Click here to view the Catalog.
Need help selecting the correct Palmgren Hydraulic Press for your application? Please call (800) 608-5210 or email info@intlairtool.com
- Type
- Hydraulic Press
- Application
- Fabrication
- Base Dimension (in.)
- 20 x 26
- Bed Height (in.)
- 3.5
- Bed Width (in.)
- 19.5
- Color
- Blue
- Cylinder Type
- Manual Hydraulic
- H-frame Press Type
- Electronic Pump
- Lever Ratio
- 400/1
- Max Pressure (Tons)
- 5
- Max Distance Ram To Table
- 38.4
- Overall Dimensions (in.)
- 30 x 20 x 65
- Press Type
- H-frame Presses
- Ram Diameter (in.)
- 1.57
- Throat Capacity (in.)
- 19.7 x 14.2
