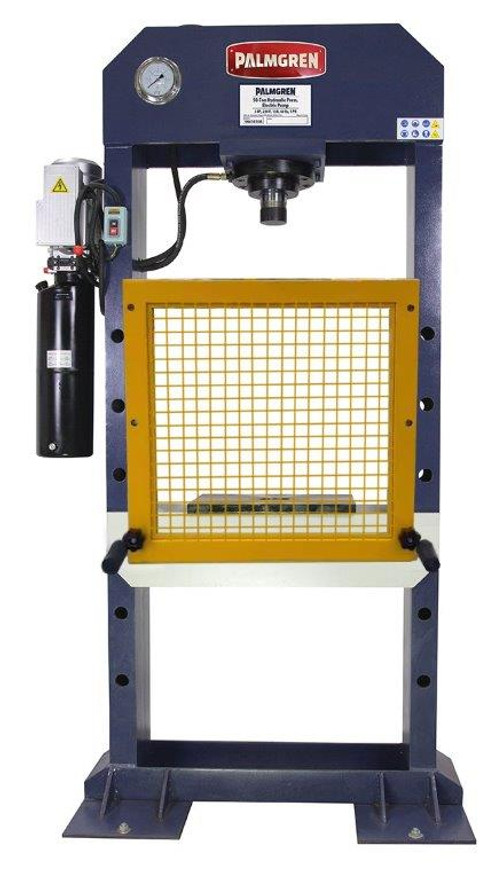

Palmgren 9661616 50 Ton Electric Pump Floor Hydraulic Press | 31.5" x 27.5" Throat Capacity | 31.5" x 27.5" Max. Work Diameter

Palmgren 9661616 50 Ton Manual Pump Floor Hydraulic Press is engineered for professional-grade metalworking and fabrication projects requiring high force and precision. This robust floor-mounted press delivers a maximum pressing capacity of 10 tons, enabling it to handle demanding tasks such as bending, straightening, pressing, and assembling components with ease. Designed with a generous working area of 31.5" x 27.5", it provides ample space for a variety of workpieces, while the maximum work diameter of 27.5" x 27.5" ensures flexibility to accommodate larger or irregularly shaped materials. The manual hydraulic pump offers smooth and precise control over pressing force, allowing users to apply pressure incrementally for accuracy and safety. Constructed with a heavy-duty steel frame, the press ensures stability and durability even under rigorous use. Its ergonomic design minimizes operator fatigue, making it suitable for prolonged operations in industrial or workshop settings. Whether you are shaping metal sheets, assembling parts, or performing maintenance tasks, this hydraulic press combines power, precision, and reliability to meet the toughest pressing requirements.

Type: Hydraulic Press | Base Dimension (in.): 40 x 20 | Capacity over Table (in.): 19.5 | Center Hole (in.): 3.15 | Cylinder (Fixed or Dynamic): Fixed | Cylinder Type: Single Action | Diameter of Work (in.): 31.5 | Frame Capacity (Tons): 50 | H-frame Press Type: Electronic Pump | Frequency (Hz): 60Hz | Includes: 3 Bits | Largest Arbor Extension: 16 | Max Pressure (Tons): 50 | Max Distance Ram To Table: 47.8 | Maximum Work Diameter (in.): 31.5 x 27.5 | Max Workpiece Width (in.): 27.5 | Minimum Work Diameter (in.): 31.5 x 0.75 | Motor (HP): 3 | Overall Dimensions (in.): 40x20x88 | Phase: Single | Press Type: H-frame Presses | Pressure (Tons): 50 | Pump Type: Electric | Ram Size (in.): 8.65 | Ram Speed Press: 0.85 | Reservoir Capacity (gal.): 3 | Size of Ram Face (in.): 3.15 | Table Diameter (in.): 13.7 x 18.8 x 1.18 | Throat Capacity (in.): 31.5 x 27.5 | Voltage: 230

Features:

• Pressure gauge for direct pressure readings
• Easily adjustable table for quick height changes between applications
• Holes in side frames allow for insertion of long material
• Electronic operation for increased performance
• Fully-welded heavy steel plate frame for maximum rigidity
• Factory preset relief valve to prevent exceeding maximum pressure capacity
• By-pass hole prevents excessive ram extension
• Rapid ram return starts as soon as release valve is opened and may be stopped at any point by closing the valve
• Single acting cylinder design for improved operation
• Table Weight Capacity: 2500 lbs
• Adj. between Table Pin to Holes: 7.87 in
• Distance between channels: 10.16 in
• V-Block Weight: 5.9 lbs
