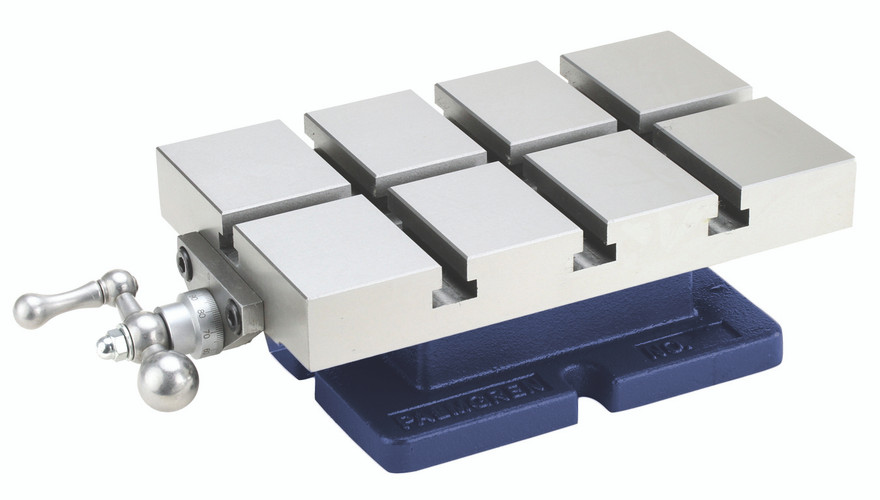

Palmgren 9636101 6" × 10" Cross Slide Table is a precision-built, single-axis positioning fixture ideal for applications requiring accurate lateral motion—such as milling, drilling, grinding, inspection, and layout work. Machined from fine-grain cast iron with adjustable dovetail slides and equipped with a counterbalanced ball-crank handle that remains clear of the work surface, it ensures smooth and efficient movement. The table surface is precision-ground to a 0.001" total indicator reading, and its graduated dial offers 0.001" resolution for meticulous control. Featuring a 6" × 10" top with a longitudinal T-slot and three transverse 7/16" T-slots, the unit mounts securely on its 7-5/8" × 6-3/8" base with bolt lugs and a 5/8" keyway for precise alignment. With a 6" travel, 3-1/2" profile height, and weighing approximately 32–34-lb, the 9636101 offers stable, repeatable positioning with user-friendly adjustments and premium craftsmanship.
Type: Cross Slide Table | Base Dimension (in.): 7-5/8 x 6-3/8 | Positioning Table Type: Cross Slide | Table Dimensions (in.): 10 x 6 | Table Travel (in.): 6 | Vise Material: Iron
Features:
- Precision ground table tops to 0 001" total indicator reading
- Dials are graduated in 0 001" increments
- Ball crank handles do not extend below the base to eliminate interference with the machine table
- Bases have bolt lugs and 5/8" keyways for locating and accurate, secure mounting
- Table tops have a longitudinal and three transverse 7/16" T-slots Dovetailed slides have adjustable steel gibs to compensate for wear
Looking for more information about Palmgren Cross Slide Tables? Click here to view the Catalog.
Need help selecting the correct Palmgren Cross Slide Table for your application? Please call (800) 608-5210 or email info@intlairtool.com
