Palmgren 9634105 10" Horizontal and Vertical Rotary Table | 12" x 9-1/2" Base Size

Palmgren 9634105 10" Horizontal/Vertical Rotary Table is a versatile, precision-grade accessory that enhances your milling, drilling, or inspection setup by allowing smooth, accurate rotation of workpieces in both horizontal and vertical orientations. Featuring a 10" diameter table with a 12" × 9-1/2" ground base, it offers full squareness and stability, while its precision-ground top (accurate to 0.001" total indicator reading) ensures concentric movement under load. Equipped with a smooth worm-gear drive and 40:1 reduction ratio, the rotary feed delivers controlled, backlash-minimized movement via a balanced ball-crank handle that avoids interference with the machine table.The integrated rotary dial, with coarse 3-minute graduations and fine 1-minute vernier, allows for precise indexing, while sturdy mounting lugs and a 5/8" keyway located on both mounting surfaces facilitate secure, versatile installation

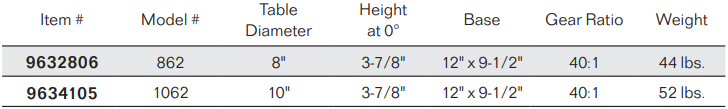

Type: Rotary Table | Base Dimension (in.): 12 x 9-1/2 | Height at 0° (in.): 3-7/8 | Positioning Table Type: Rotary | Table Diameter (in.): 10 | Gear Ratio: 40:1

Features:

• Use in either the vertical or horizontal position
• The table top and the vertical and horizontal bases are ground for overall squareness
• Precision ground table top to 0 001" total indicator reading
• A 5/8" keyway and mounting lugs are provided on both the ­vertical and horizontal mounting surfaces
• Smooth worm gear drive provides positive rotary feed
• Balanced ball crank feed handle does not exceed below the base to eliminate interference with the machine table
• Rotary dial is graduated in 3 minute increments and 1 minute­ ­increments on the vernier
