Palmgren’s new Bench Vise looks different for a reason. It is built different than all other vises. The unique shaped body houses the straight-line pull, super strong power tunnel that assures that the spindle and nut will never wear out. The entire vise is made of 65,000 PSI ductile iron - coupled with our exclusive manufacturing process of the body and nut – delivers a vise that is 50 percent stronger than all gray iron vises and 20 percent stronger than competitive ductile iron vises. Palmgren vises are built for performance and endurance to handle any of your workholding requirements.
Palmgren 9629755 5.5" Combination Bench and Pipe Vise is a heavy-duty workholding tool designed for superior strength, durability, and versatility in demanding applications. Unlike conventional vises, it features a unique "straight-line pull" power tunnel design, which is engineered to prevent wear on the spindle and nut, ensuring a lifetime of reliable performance and increased clamping power.

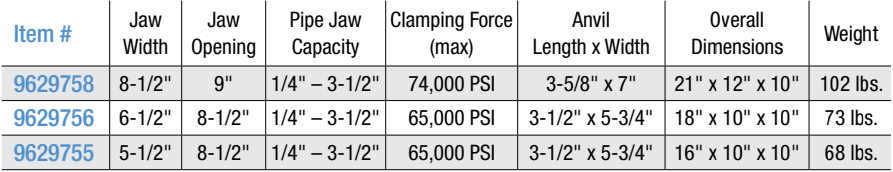

Type: Combination Bench and Pipe Vise | Anvil Length x Width (in.): 3-1/2 x 5-3/4 | Jaw Opening (in.): 8-1/2 | Jaw Type: Replaceable | Jaw Width (in.): 5-1/2 | Material: Ductile Iron | Max. Jaw Opening (in.): 5.75 | Mounting Hole (in.): .5 | Overall Dimensions (in.): 16 x 10 x 10 | Max Clamping Force (PSI): 65000 | Throat Capacity (in.): 4 x 4 | Vise Material: SG Ductile
Features:
- Straight line power tunnel design - unbreakable spindle & nut with increased clamping power
- Enclosed construction keeps lubrication in contaminants out, making it ideal for both indoor outdoor use
- Hardened replaceable steel jaw inserts ensures positive hold
- Hardened replaceable steel self-centering pipe jaws hold round materials securely
- Extra deep throat gives you more working room where it counts. Locking swivel base with double lockdowns for non-slip hold in any position Precision side bar machined for a .002" fit
- Oversized machined anvil provides structural integrity and consistent properties of toughness and hardness for greater working area
- ULTRA STRONG, the entire vise is made of 65,000 PSI ductile iron - coupled with our exclusive manufacturing process of the body and nut – delivers a vise that is 50% stronger than all gray iron vises and 20% stronger than competitive ductile iron vises
- Locking swivel base with 360 degree rotation enhanced by double lockdowns for non-slip hold in any position
Looking for more information about Palmgren Combination Bench and Pipe Vises? Need help selecting the correct Palmgren Combination Bench and Pipe Vise for your application? Please call (800) 608-5210 or email info@intlairtool.com
