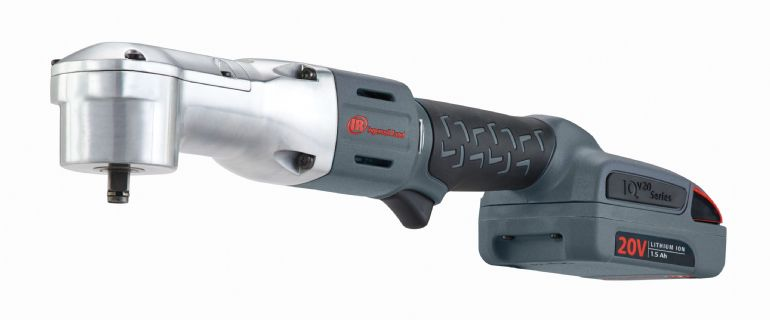

Ingersoll Rand W5330 Impact Wrench | 3/8" Drive Size | 1,900 RPM | 180 (ft-lbs) Max Torque (Bare Tool Only, Battery Not Included)

Ingersoll Rand W5330 IQV20 Series Right Angle Impactool combines the reach of a ratchet-style tool with cordless impact performance for fasteners in confined locations. This 20V model uses a 3/8" hog ring drive and an Inline battery configuration that keeps the battery aligned with the tool body, helping technicians reach areas where a conventional impact wrench can be difficult to position.

The W5330 provides a variable 0–1,900 RPM no-load speed and up to 190 ft-lbs (258 Nm) of maximum torque with BL2010 or BL2022 batteries; the manufacturer brochure lists 180 ft-lbs (245 Nm) with a BL2012 battery. A variable-speed trigger, forward/reverse switch, ergonomic grip, and reactionless impact torque give the operator useful control for automotive, industrial, and facility maintenance fastening work.

*Note: This listing is for the bare tool only. Battery and charger are not included and must be purchased separately.

Type: Cordless Right Angle Impact Wrench | Series: IQV20 Series | Model: W5330 | Configuration: Bare Tool | Voltage: 20V DC | Drive Size: 3/8" | Drive Type: Hog Ring | No-Load Speed: 0–1,900 RPM | Max Torque with BL2012: 180 ft-lbs (245 Nm) | Max Torque with BL2010/BL2022: 190 ft-lbs (258 Nm) | Tool & Battery Weight with BL2012: 4.55 lb (2.06 kg) | Tool & Battery Weight with BL2010/BL2022: 5.15 lb (2.27 kg) | Length with Battery: 17.25" (439 mm)

Features:

• Right-angle configuration provides ratchet-like reach for fastening work in spaces where conventional impact wrenches can be difficult to position.
• Inline battery design keeps the battery in line with the tool body to improve access in confined work areas.
• Reactionless impact torque delivers fastening power while reducing the reaction associated with traditional ratcheting action.
• Variable-speed trigger provides control from zero to full no-load speed for different fastening and removal tasks.
• Conveniently positioned forward/reverse switch allows the operator to change rotation direction directly from the tool.
• Ergonomic handle and comfort grip provide reach comparable to a ratchet while supporting controlled tool handling.
• Steel-lined aluminum hammer case helps protect internal impact components while maintaining a streamlined tool design.
• Tough nylon housing is designed to withstand 6-foot drops and exposure to shop fluids.
• Fully serviceable head provides improved access to internal components for service and maintenance.

Applications:

• General automotive repair where surrounding components limit access to fasteners.
• General industrial fastening and equipment maintenance.
• Facility maintenance requiring portable cordless fastening and removal capability.
• Service work where the reach of a ratchet-style tool and the output of an impact wrench are both beneficial.

FAQs:

• Q: Does the W5330 bare tool include a battery or charger?
  A: No. This SKU is the bare-tool version, so a battery and charger are not included and must be obtained separately.
• Q: What drive does the Ingersoll Rand W5330 use?
  A: The W5330 uses a 3/8" hog ring drive. The related W5350 uses a 1/2" drive.
• Q: How much torque does the W5330 produce?
  A: The IQV20 Series brochure specifies 180 ft-lbs (245 Nm) of maximum torque with a BL2012 battery and 190 ft-lbs (258 Nm) with BL2010 or BL2022 batteries.
• Q: What is the speed range of the W5330?
  A: The manufacturer brochure specifies a 0–1,900 RPM no-load speed, with a variable-speed trigger providing operator control within that range.
• Q: Why is the Inline battery design useful?
  A: Instead of positioning the battery across the bottom of the handle, the Inline configuration keeps it aligned with the tool body. This helps the right-angle impact wrench reach confined areas traditionally accessed with a ratchet.
• Q: Which applications are identified for the W5330?
  A: Ingersoll Rand identifies facility maintenance, general industrial work, and general automotive repair as ideal applications for the W5330/W5350 right-angle Impactool family.

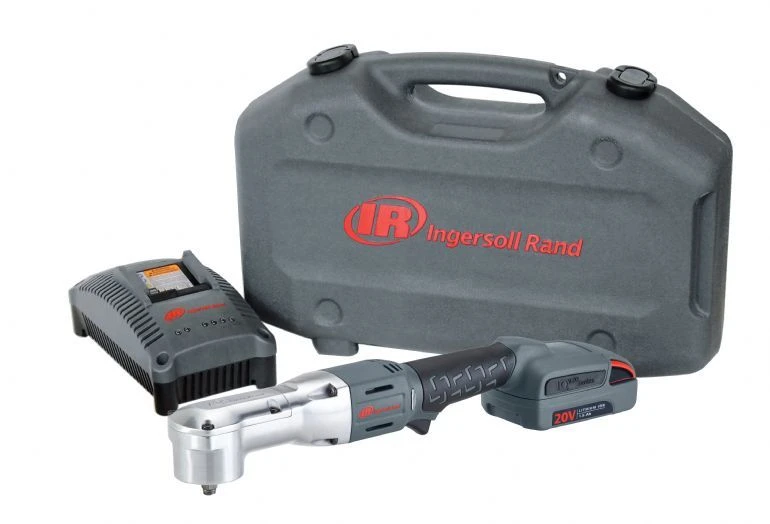

Available in the following kits:

• W5350-K12 1/2" Impact Wrench Kit (BC1121 Charger, 1 BL2012 Li-ion Battery & Case)
• W5350-K22 1/2" Impact Wrench Kit (BC1121 Charger, 2 BL2012 Li-ion Battery & Case)
• W5330-K22 3/8" Impact Wrench Kit (BC1121 Charger, 2 BL2012 Li-ion Battery & Case)
• W5330-K12 3/8" Impact Wrench Kit (BC1121 Charger, 1 BL2012 Li-ion Battery & Case)

Looking for more information about Ingersoll Rand Impact Wrench? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Impact Wrenches for your assembly application, call (800) 608-5210 or email info@intlairtool.com
