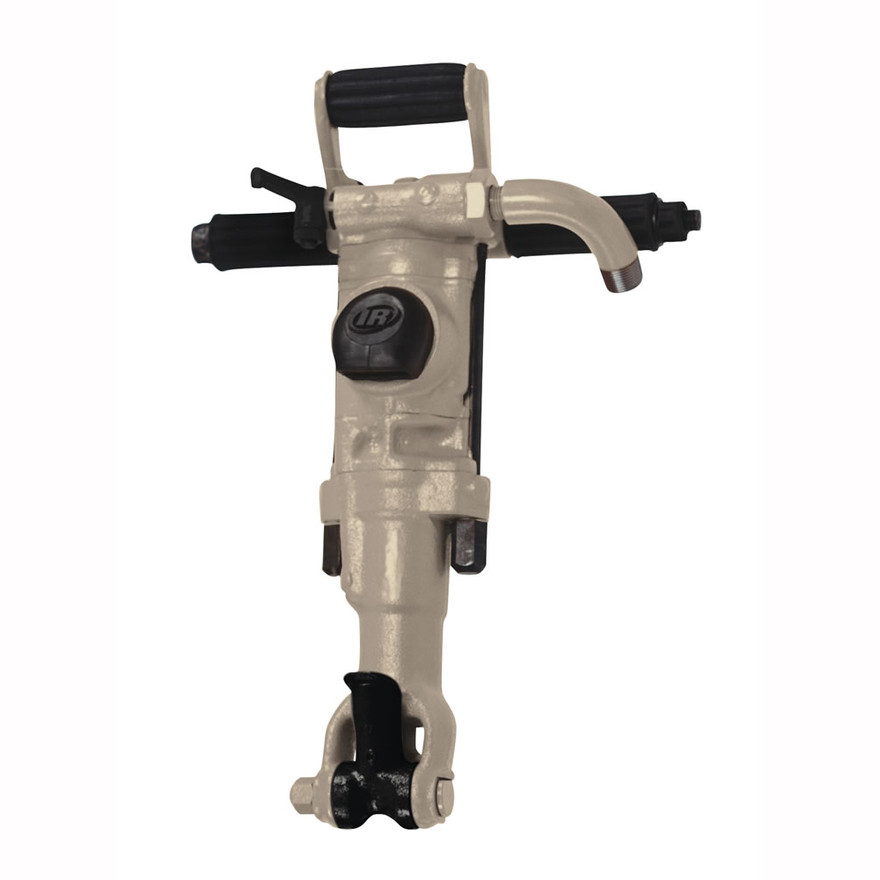

Ingersoll Rand JRD30-B Reversible Pawl Rock Drill | 7/8" x 4-1/4" Hex Shank | 2700 BPM | For Drilling and Un-jamming

For efficient and reliable rock drilling, choose the Ingersoll Rand JRD30-B Reversible Pawl Rock Drill. As a powerful tool from the JRD30 Series, this rock drill is engineered to combine a high impact rate with a specialized mechanism that enhances productivity and safety. It is perfectly suited for a wide range of applications, including quarry work, mining, road construction, and utility projects where drilling through hard materials is a necessity.

The JRD30-B delivers a formidable 2700 blows per minute (BPM). This high-frequency impact ensures rapid and effective penetration into rock, concrete, and other hard materials. A defining feature is its reversible pawl mechanism, which provides a unique advantage in the field. The reversible pawl allows the drill to be operated in reverse, enabling the operator to easily un-jam a stuck drill steel and extract the bit from the borehole. This significantly reduces downtime, minimizes the risk of damaged equipment, and greatly enhances overall operational efficiency.

Equipped with a robust 7/8" x 4-1/4" Hex shank, the JRD30-B provides a secure and reliable connection to a wider range of industry-standard drill bits. The increased chuck length provides added stability for longer drill steels. Built with Ingersoll Rand's renowned durability, this rock drill is a dependable and efficient tool for professionals who require both powerful drilling and the added functionality of easy bit extraction.

Type: Rock Drill | Bore Dia. (in.): 2.38 | Series: JRD30 Series | Stroke Length (in.): 1.44 | Blows Per Minute (BPM): 2700 | Air Consumption @ Load (CFM): 73 | Air Consumption @ Load (l/mn): 2067 | Shank Size (in.): 7/8 x 4-1/4 | Shank Type: Hex | Max Hole Depth (ft.): 10 | Max Hole Dia. (in.): 1.5 | Length w/o Accessory (in.): 19.5 | Air Inlet NPT (in.): 3/4 | Min Hose Size (in.): 3/4

Features:

• Reversible Pawl Mechanism: A unique feature that allows the tool to operate in reverse, simplifying the un-jamming and extraction of stuck drill bits from boreholes
• High Impact Rate: Delivers a powerful 2700 BPM for rapid and effective penetration into rock, concrete, and other hard surfaces
• Robust 7/8" Hex Shank: Provides a secure connection and broad compatibility with a wide range of heavy-duty drill steels and bits
• Versatile Applications: Ideal for quarry work, mining, foundation drilling, road repair, and general construction where hard-material drilling is required
• Reduced Downtime: The reversible function drastically cuts down on time lost to stuck bits, boosting overall productivity
• Durable JRD30 Series Construction: Built to withstand the harsh conditions of rock drilling, ensuring long-term reliability and performance

Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)

Looking for more information about Ingersoll Rand Construction Tools? Click here to view the Catalog

For help selecting the correct too please call (800) 608-5210 or email info@intlairtool.com
