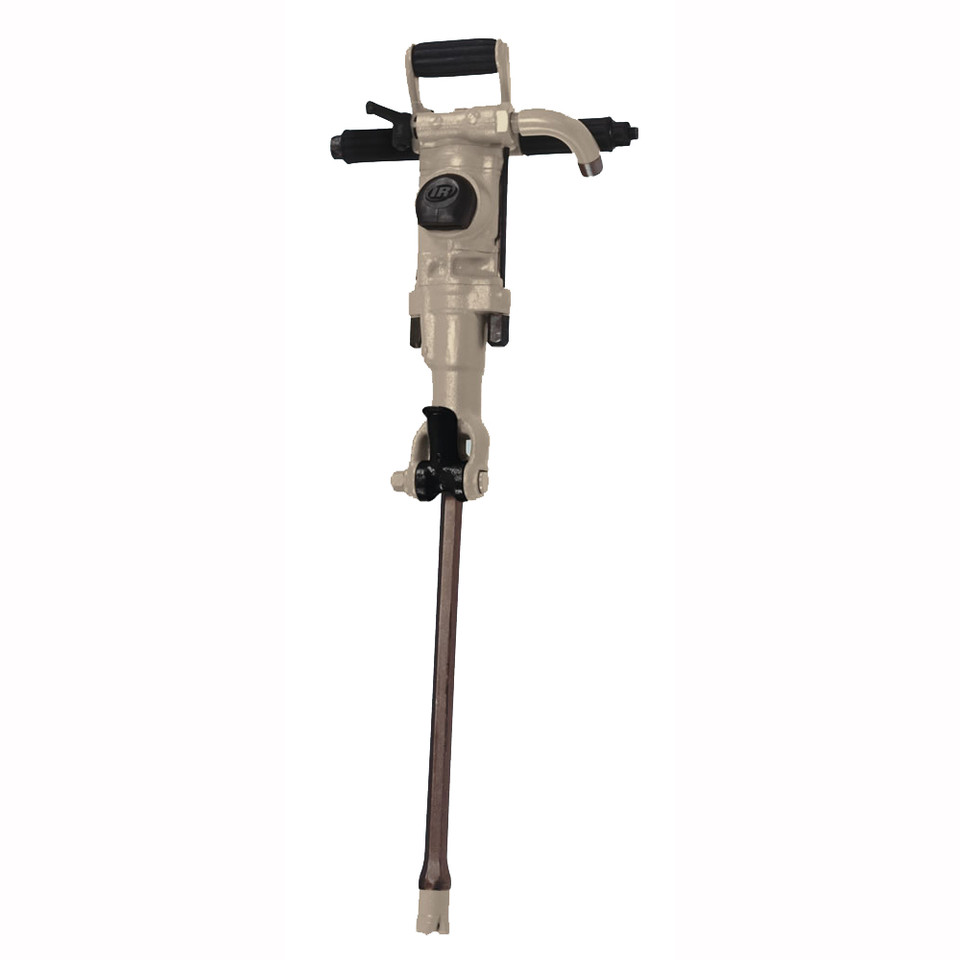

Built for quarry work, utility installation, road construction, and general concrete drilling, the Ingersoll Rand JRD30-B Reversible Pawl Air Rock Drill combines a 2.38" bore, 1.44" stroke, and 2,700 blows per minute (BPM) to deliver rapid drilling performance in concrete and soft to medium rock. Its reversible pawl mechanism allows the drill to reverse rotation, making it easier to free a jammed drill steel without unnecessary downtime. This practical feature helps crews maintain productivity while reducing the effort required to remove stuck bits in demanding field conditions.
7/8" x 4-1/4" hex shank provides compatibility with longer drill steels while maintaining a secure connection during drilling. Suitable for both wet and dry drilling applications, the JRD30-B can produce holes up to 1.5 inches in diameter and 10 feet deep when used with the appropriate accessories, making it a dependable choice for contractors, utility crews, mining operations, and industrial construction professionals.
Type: Air Rock Drill | Series: JRD30 Series | Mechanism: Reversible Pawl | Bore: 2.38 in. | Stroke Length: 1.44 in. | Blows Per Minute: 2700 BPM | Shank Type: Hex | Shank Size: 7/8" x 4-1/4" | Air Consumption: 73 CFM | Maximum Hole Diameter: 1.5 in. | Maximum Hole Depth: 10 ft | Length: 19.5 in. | Air Inlet: 3/4" NPT | Minimum Hose Size: 3/4"
Features:
- Reversible pawl mechanism helps release stuck drill steels by allowing reverse operation during extraction.
- Produces 2,700 blows per minute for efficient drilling in concrete and soft to medium rock.
- Suitable for both wet and dry drilling, allowing flexibility across changing jobsite conditions.
- 7/8" x 4-1/4" hex shank accommodates longer drill steels while providing secure bit retention.
- Compact 30 lb class design is easier to maneuver during horizontal and confined-space drilling.
- Integral muffler helps reduce exhaust noise during operation.
- Easy-access adjustable 3-speed throttle provides improved control for varying drilling conditions.
Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)
Applications:
- Mining and quarry operations for drilling blast and anchor holes in soft to medium rock.
- Road construction crews creating holes for repair, anchoring, and utility installation.
- Utility and infrastructure projects involving concrete, masonry, and foundation drilling.
- General construction sites requiring portable pneumatic drilling equipment for wet or dry conditions.
- Industrial maintenance and plant expansion projects involving concrete and structural drilling.
FAQs:
- Q: What is the advantage of the reversible pawl mechanism?
A: It allows the drill to reverse direction, making it easier to free and remove a jammed drill steel from the borehole, helping reduce downtime. - Q: Can the JRD30-B be used for wet drilling?
A: Yes. The JRD30 Series is suitable for both wet and dry drilling, with wet drilling often helping extend tool life under demanding conditions. - Q: What is the maximum drilling capacity?
A: With the proper drill steel and accessories, the tool is rated for holes up to 1.5 inches in diameter and up to 10 feet deep in concrete or soft to medium rock. - Q: What air supply is recommended?
A: The manufacturer specifies 73 CFM air consumption with a 3/4" NPT air inlet and recommends a minimum 3/4" air hose for proper performance.
| SKU | Hex Shank Size | Stroke in (mm) |
Bore in (mm) |
Length Without Accessory in (mm) |
Weight Without Accessory lb (kg) |
Max Hole Diameter | Max Hole Depth | bpm | cfm | Inlet Size NPT in |
Recommended Hose Size in (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JRD30-A | 7/8" x 3-1/4" | 1.44" (37) | 2.38" (60) | 19.5" (495) | 29 (13.2) | 1.5" (38) | 10' (254) | 2,700 | 73 | 3/4" | 3/4" (19) |
| JRD30-B | 7/8" x 4-1/4" | 1.44" (37) | 2.38" (60) | 19.5" (495) | 29 (13.2) | 1.5" (38) | 10' (254) | 2,700 | 73 | 3/4" | 3/4" (19) |
| JH40C1 | 7/8" x 3-1/4" | 2.63" (67) | 2.5" (63.5) | 22.5" (572) | 61 (27.7) | 2" (51) | 18' (457) | 2,000 | 115 | 3/4" | 3/4" (19) |
| JH40C2 | 7/8" x 4-1/4" | 2.63" (67) | 2.5" (63.5) | 22.5" (572) | 61 (27.7) | 2" (51) | 18' (457) | 2,000 | 115 | 3/4" | 3/4" (19) |
| JH40C3 | 1" x 4-1/4" | 2.63" (67) | 2.5" (63.5) | 22.5" (572) | 61 (27.7) | 2" (51) | 18' (457) | 2,000 | 115 | 3/4" | 3/4" (19) |
| JRD50-A | 7/8" x 3-1/4" | 2" (51) | 3" (76) | 20.5" (521) | 51 (23) | 2" (51) | 16' (406) | 2,300 | 120 | 3/4" | 3/4" (19) |
| JRD50-B | 7/8" x 4-1/4" | 2" (51) | 3" (76) | 20.5" (521) | 51 (23) | 2" (51) | 16' (406) | 2,300 | 120 | 3/4" | 3/4" (19) |
| JRD50-C | 1" x 4-1/4" | 2" (51) | 3" (76) | 20.5" (521) | 51 (23) | 2" (51) | 16' (406) | 2,300 | 120 | 3/4" | 3/4" (19) |
Looking for more information about Ingersoll Rand Air Rock Drill? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Construction Tools for your application, please call (800) 608-5210 or email info@intlairtool.com
