Ingersoll Rand DXS2 Cordless Impact Wrench Kit | W7153-K22 | 1600 (ft-lbs) Torque | 1/2" Square Drive

For technicians handling stubborn fasteners in automotive repair, fleet maintenance, and equipment servicing, the Ingersoll Rand W7153-K22 DXS2 Cordless Impact Wrench Kit combines high-torque fastening performance with the mobility of a battery-powered tool. Featuring a 1/2" square drive and 20V IQV20™ battery platform, the W7153 delivers up to 1,600 ft-lbs of breakaway torque with compatible 3/4" DXS® drive accessories, providing substantial loosening force for seized nuts and bolts. The supplied 1/2" drive configuration is rated at 1,500 ft-lbs of breakaway torque in the provided manufacturer flyer. Its patented DXS® Drive Xchange System™ uses interchangeable anvils, allowing technicians to change drive configurations without relying on conventional socket adapters.

Powered by a brushless motor, the W7153 delivers a 1,900 RPM maximum free speed and 2,450 impacts per minute for efficient fastener removal and installation. Its IQV® Power Control offers four tightening modes—Full Power, Half Power, Wrench Tight, and Hand Tight—providing control for different fastening tasks. A patented 360° shadowless LED light ring illuminates the work area, while the variable-speed trigger and electronic brake help control operation. The steel-reinforced frame, chemical- and impact-resistant housing, and IPX6 environmental rating provide added protection in challenging working environments. The W7153-K22 kit includes two BL2022 5.0Ah batteries and a BC1121 charger, providing a complete cordless power setup for professional maintenance applications.

Type: Cordless Impact Wrench Kit | Model: W7153-K22 | SKU: W7153-K22 | Series: DXS® | Battery Platform: IQV20™ | Voltage: 20V | Drive Size: 1/2" Square | Drive System: DXS® Drive Xchange System™ | Included Anvil: A41H, 1/2" Standard Friction Ring | Breakaway Torque: 1,500 ft-lbs (2,034 Nm) with supplied 1/2" configuration | Maximum Breakaway Torque: 1,600 ft-lbs (2,170 Nm) with compatible 3/4" DXS® accessories | Maximum Free Speed: 1,900 RPM | Impacts Per Minute: 2,450 BPM | Motor: Brushless | Power Control: Four Tightening Modes | Lighting: 360° LED Light Ring | Environmental Rating: IPX6 | Bare Tool Weight: 6.1 lbs (2.76 kg) | Overall Length: 8.3" (211 mm) | Impacting Sound Level: 95 dB(A) | Included Batteries: Two BL2022 5.0Ah | Included Charger: BC1121

Features:

• Powerful brushless motor delivers high breakaway torque for removing stubborn fasteners without requiring an air hose.

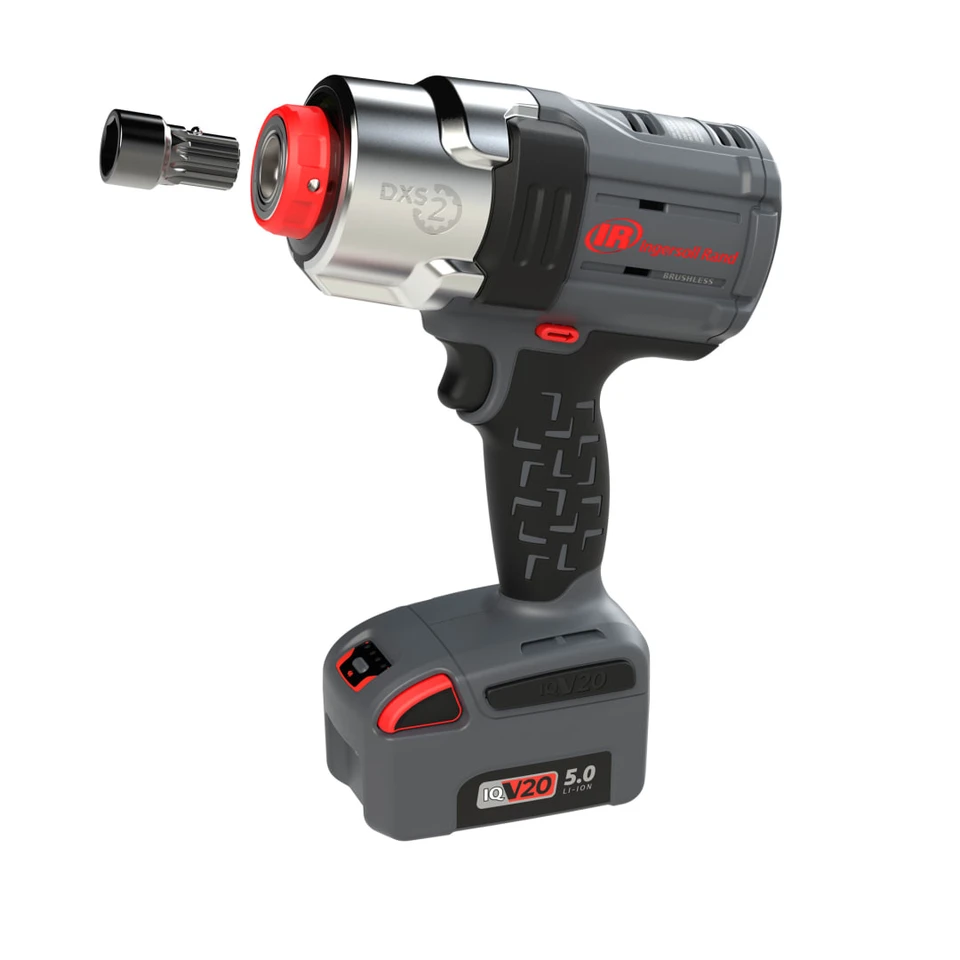

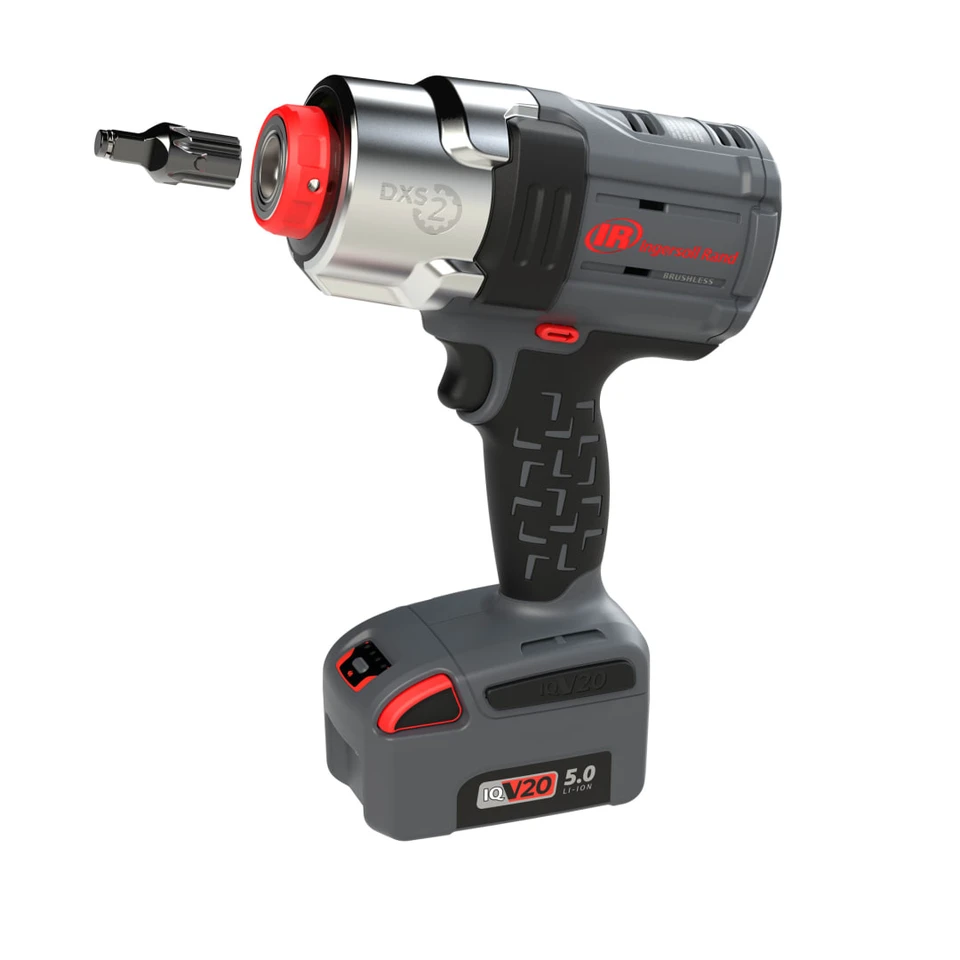

• Patented DXS® Drive Xchange System™ allows fast swapping between compatible drive anvils and helps eliminate conventional socket adapters.
• Interchangeable DXS® drive system supports compatible 3/8", 1/2", and 3/4" configurations, with additional anvils available separately.
• IQV® Power Control provides Full Power, Half Power, Wrench Tight, and Hand Tight modes for different tightening requirements.

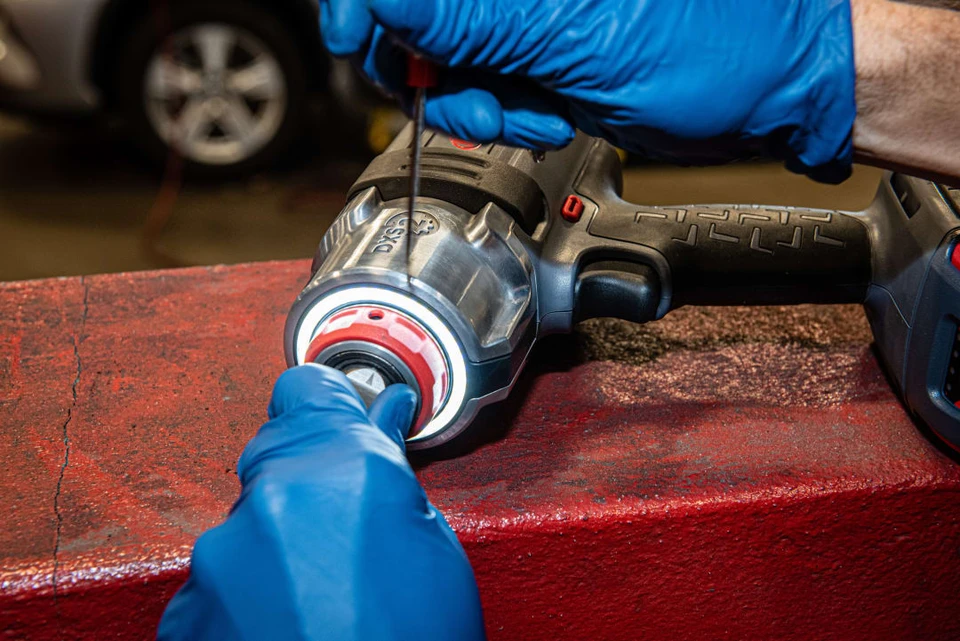

• Patented 360° shadowless LED light ring improves visibility around fasteners in dark or restricted work areas.
• Variable-speed trigger with electronic brake stops the drive when the trigger is released for greater operational control.
• Steel-reinforced frame and chemical- and impact-resistant housing provide durability, with an IPX6 rating for water-ingress protection.
• Premium overmold grip improves handling, while compatibility with Ingersoll Rand IQV20™ batteries supports a shared cordless tool platform.

Kit Includes:

• One Ingersoll Rand W7153 DXS® Cordless Impact Wrench.
• One A41H DXS2 1/2" Square Drive Standard Friction Ring Anvil.
• Two BL2022 20V 5.0Ah Lithium-Ion Batteries.
• One BC1121 Battery Charger.

Warranty: Ingersoll Rand provides a 5-Year Limited Warranty on the W7153 cordless impact wrench.

Applications:

• Automotive repair shops - removing stubborn wheel nuts, suspension fasteners, and vehicle components.
• Fleet and commercial vehicle maintenance - servicing fasteners on trucks, trailers, and transportation equipment.
• Heavy equipment repair - loosening large nuts and bolts on construction and agricultural machinery.
• Industrial maintenance and MRO - performing fastening and equipment disassembly without a compressed-air connection.
• Mobile mechanics and field service - handling high-torque fastening tasks at locations where air hoses or electrical outlets are inconvenient.

FAQs:

• Q: What is the maximum torque of the W7153? A: Up to 1,600 ft-lbs of breakaway torque with compatible 3/4" DXS® accessories.
• Q: Does the W7153-K22 include batteries? A: Yes, it includes two 20V 5.0Ah batteries and a charger.
• Q: What drive size comes with the kit? A: A 1/2" square-drive friction-ring anvil.
• Q: Can the drive size be changed? A: Yes, using compatible DXS® interchangeable anvils sold separately.
• Q: Does the wrench have a work light? A: Yes, it features a 360° LED light ring.
