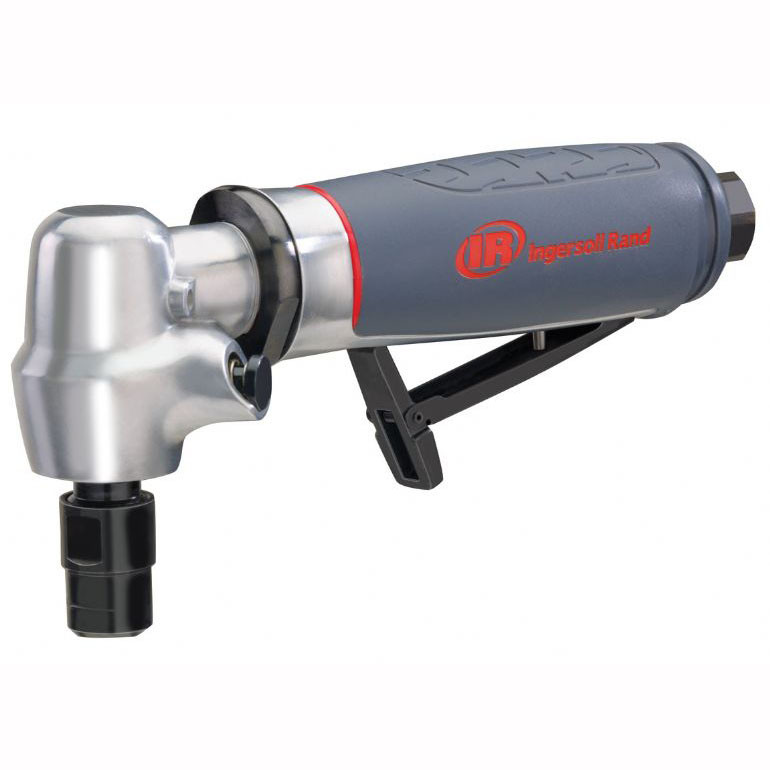

Ingersoll Rand 5102MAX Max Series Air Angle Die Grinder | 0.4 HP | 20,000 RPM | 1/4" Collet | Rear Exhaust

Designed for demanding grinding, deburring, porting, and finishing applications, the Ingersoll Rand 5102MAX Max Series Air Angle Die Grinder delivers reliable performance with a 0.4 HP motor, 20,000 RPM free speed, and a 1/4-inch collet for use with a wide range of compatible abrasive accessories. Its compact angle-head configuration provides improved access in confined areas, making it a versatile pneumatic tool for automotive repair, fabrication, maintenance, and industrial material finishing applications.

Part of the Ingersoll Rand MAX Series die grinder lineup, the 5102MAX features a rear exhaust design that directs airflow away from the work surface while helping maintain a cleaner operating area. The angle die grinder configuration improves maneuverability around complex parts and tight spaces, while the 0.4 HP motor provides additional power for demanding grinding and surface preparation tasks.

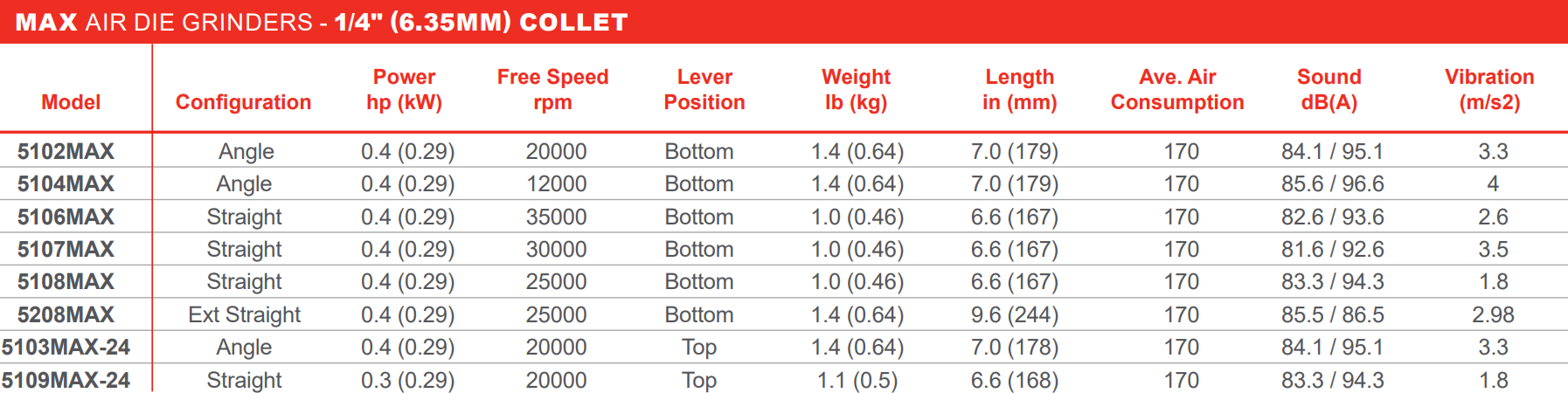

Type: Pneumatic Angle Die Grinder | Series: MAX Series | Model: 5102MAX | Motor Power: 0.4 HP | Free Speed: 20,000 RPM | Collet Size: 1/4" | Exhaust: Rear Exhaust | Configuration: Angle

Features:

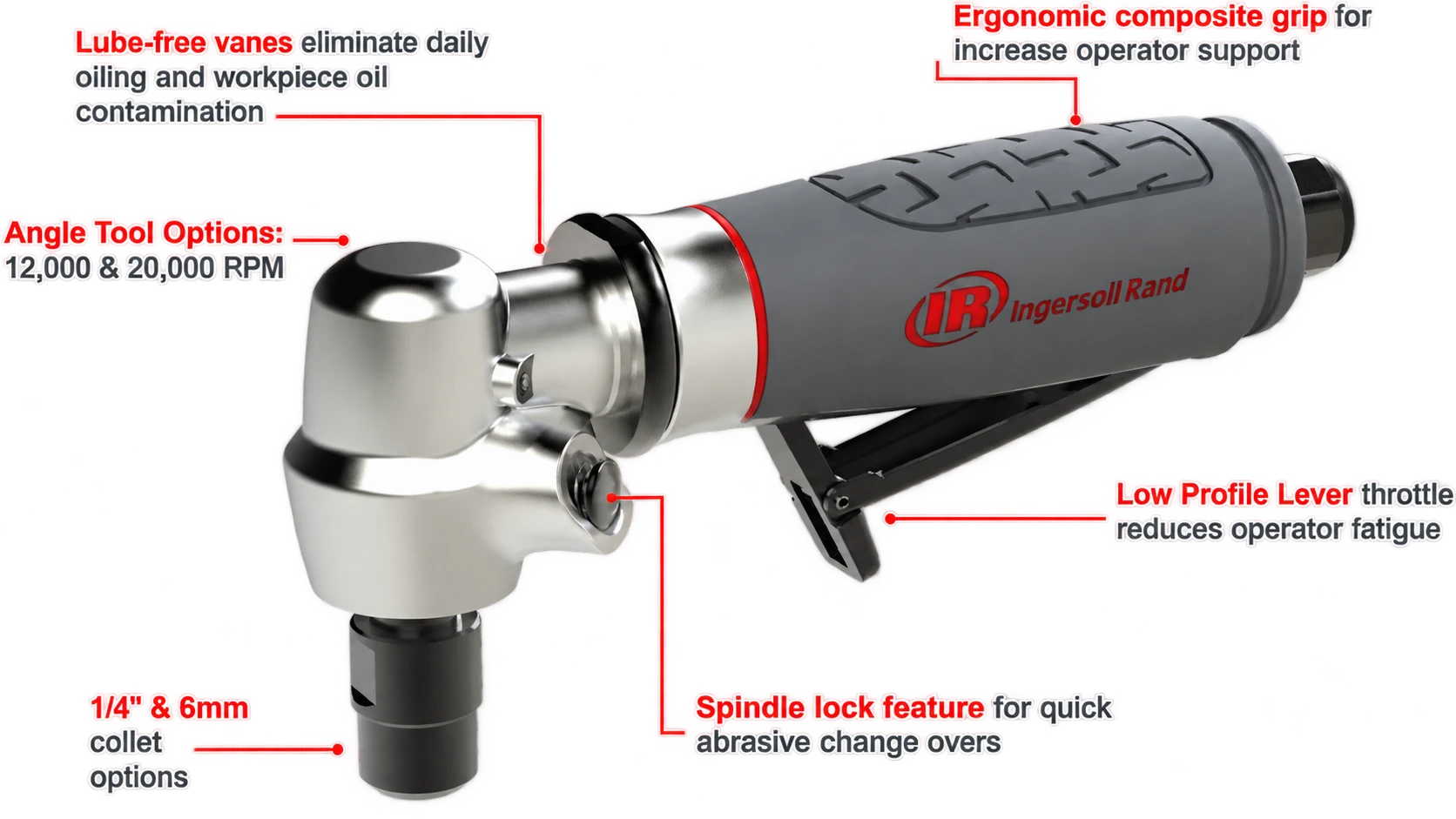

• Angle-head design improves access for grinding and finishing applications in confined areas.
• 0.4 HP motor provides dependable power for material removal and surface preparation tasks.
• 20,000 RPM free speed supports efficient grinding, blending, and polishing operations.
• 1/4-inch collet accepts commonly used grinding stones, carbide burrs, and abrasive accessories.
• Rear exhaust directs airflow away from the work surface and operator during operation.
• MAX Series construction is designed for professional maintenance, fabrication, and industrial applications.

Applications:

• Grinding and blending welds in fabrication and metalworking environments.
• Deburring machined components and removing sharp edges after cutting operations.
• Porting and smoothing surfaces in automotive and mechanical repair applications.
• Surface preparation before coating, finishing, or assembly.
• General industrial maintenance tasks requiring a compact angle die grinder.

FAQs:

• Q: What accessories can be used with the 5102MAX?
  A: The 5102MAX uses a 1/4-inch collet and accepts compatible grinding, polishing, and abrasive accessories designed for that size.
• Q: What is the advantage of an angle die grinder design?
  A: An angle configuration provides improved access and control when working around complex shapes, recessed areas, and confined spaces.
• Q: What applications is the 5102MAX designed for?
  A: It is designed for professional grinding, deburring, blending, polishing, and surface preparation applications in automotive, fabrication, and industrial environments.
• Q: Why is rear exhaust useful on a die grinder?
  A: Rear exhaust helps direct discharged air away from the grinding surface and work area, helping maintain a more controlled operating environment.

Looking for more information about the Ingersoll Rand Grinder? Click here to view the Catalog

For help choosing the correct Ingersoll Rand Grinders, please call (800) 608-5210 or email info@intlairtool.com
