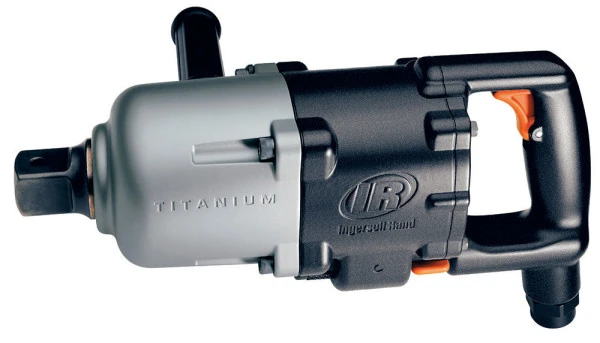

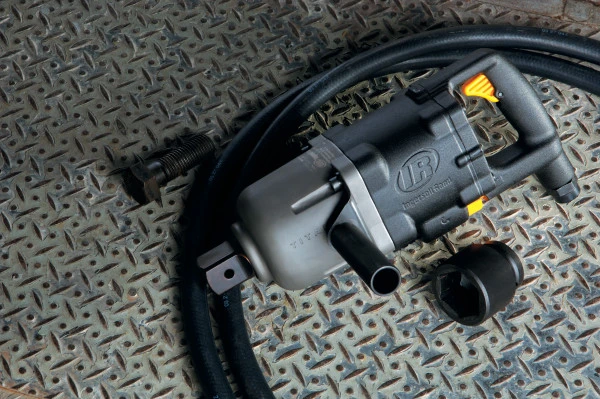

Designed for demanding industrial bolting applications in hazardous-area environments, the Ingersoll Rand 3955B2TiEX ATEX Air Impact Wrench delivers 5,000 ft-lbs of maximum torque with a 1-1/2-inch square drive configuration and 2,750 RPM free speed. This super duty pneumatic impact wrench is engineered for heavy equipment maintenance, oil and gas service, and industrial applications where high torque output and ATEX-rated operation are required. Its Titanium hammer case helps reduce tool weight while maintaining the durability needed for severe working conditions.
The 3955B2TiEX features a TwinHammer impact mechanism (a dual-hammer system that delivers balanced impact energy for consistent torque output) and a pressure-feed lubrication system to support reliable operation during repetitive heavy-duty fastening tasks. The 1-1/2-inch drive provides compatibility with large impact sockets, while the ATEX configuration is designed for applications requiring equipment suitable for potentially explosive atmospheres. The supplied catalog confirms the ATEX model designation and core performance specifications; additional ATEX certification details should be verified from the manufacturer documentation if required.
Type: Pneumatic Impact Wrench | Series: 3900 Super Duty Series | Drive Size: 1-1/2" Square | Configuration: ATEX | Handle: Pistol Grip | Impact Mechanism: TwinHammer | Free Speed: 2,750 RPM | Maximum Torque: 5,000 ft-lbs | Air Inlet: 1/2" NPT
|
Feature:
|
|

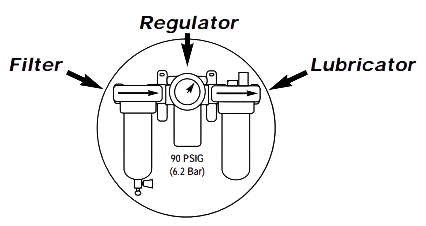

Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)
Applications:
- Oil and gas maintenance applications requiring high-torque pneumatic tools.
- Heavy equipment service in industrial and remote field environments.
- Mining, petrochemical, and process industry maintenance operations.
- Large machinery repair involving heavy fasteners and structural assemblies.
- Industrial MRO applications where hazardous-area tool requirements apply.
FAQs:
- Q: What does ATEX mean for this impact wrench?
A: ATEX refers to European requirements for equipment intended for use in potentially explosive atmospheres. Specific certification markings should be confirmed from the manufacturer documentation. - Q: Is the 5,000 ft-lbs rating the working torque?
A: The 5,000 ft-lbs specification is the maximum torque rating. Actual fastening performance depends on the application, air supply, fastener condition, and operating conditions. - Q: What type of sockets does this impact wrench use?
A: The 3955B2TiEX uses compatible 1-1/2-inch square-drive impact sockets. - Q: Why use a titanium hammer case?
A: The titanium hammer case helps reduce tool weight while maintaining the strength needed for heavy-duty industrial bolting applications.

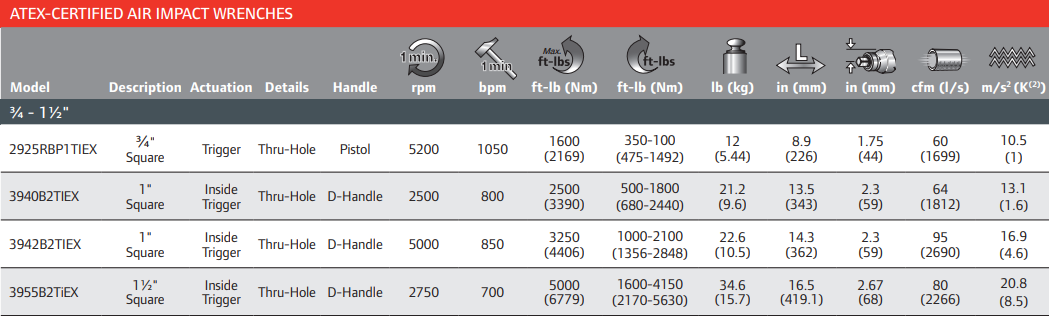

| SKU | Description | Actuation | Details | Handle | rpm | bpm | ft-lb (Nm) | ft-lb (Nm) | lb (kg) | in (mm) | in (mm) | cfm (l/s) | m/s² (K²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2925RBP1TIEX | 3/4" Square |
Trigger | Thru-Hole | Pistol | 5200 | 1050 | 1600 (2169) |
350-100 (475-1492) |
12 (5.44) |
8.9 (226) |
1.75 (44) |
60 (1699) |
10.5 (1) |
| 3940B2TIEX | 1" Square |
Inside Trigger |
Thru-Hole | D-Handle | 2500 | 800 | 2500 (3390) |
500-1800 (680-2440) |
21.2 (9.6) |
13.5 (343) |
2.3 (59) |
64 (1812) |
13.1 (1.6) |
| 3942B2TIEX | 1" Square |
Inside Trigger |
Thru-Hole | D-Handle | 5000 | 850 | 3250 (4406) |
1000-2100 (1356-2848) |
22.6 (10.5) |
14.3 (362) |
2.3 (59) |
95 (2690) |
16.9 (4.6) |
| 3955B2TiEX | 1 1/2" Square |
Inside Trigger |
Thru-Hole | D-Handle | 2750 | 700 | 5000 (6779) |
1600-4150 (2170-5630) |
34.6 (15.7) |
16.5 (419.1) |
2.67 (68) |
80 (2266) |
20.8 (8.5) |
Ingersoll Rand 3955B2TiEX Impact Wrench Parts List
Looking for more information about Ingersoll Rand Impact Wrench? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Air Impact Wrenches, please call (800) 608-5210 or email info@intlairtool.com
