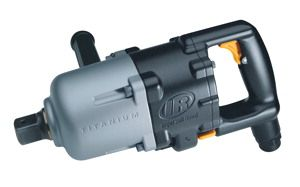

Ingersoll Rand 3942B2TIEX ATEX Air Impact Wrench combines a 1" drive size with 5,000 RPM free speed and up to 3,250 ft-lbs of maximum torque for demanding industrial bolting applications where an ATEX-configured pneumatic tool is required. This high-output impact wrench is designed for large-fastener tightening and removal tasks requiring substantial torque capacity and compatible 1" drive impact tooling.
The 3942B2TIEX provides the same high-capacity bolting performance expected from the 3942 series while offering an ATEX configuration for applicable potentially explosive atmosphere environments. Its 3,250 ft-lbs maximum torque rating supports heavy fastening and removal operations, while the 5,000 RPM free speed helps improve fastener rundown efficiency before impact torque is applied under load.
Type: ATEX Air Impact Wrench | Model: 3942B2TIEX | Configuration: ATEX | Drive Size: 1" | Free Speed: 5,000 RPM | Maximum Torque: 3,250 ft-lbs
Features:
- ATEX configuration is designed for applications requiring an impact wrench suitable for applicable potentially explosive atmospheres.
- 1" drive size supports compatible impact-rated sockets for large industrial fastening applications.
- 3,250 ft-lbs maximum torque provides substantial output for large threaded fasteners and heavy bolting work.
- 5,000 RPM free speed supports efficient fastener rundown during pneumatic operation.
- Pneumatic impact mechanism delivers repeated rotational force for tightening and removing high-load fasteners.
- High torque capacity provides a solution for applications requiring more output than standard impact wrench configurations.
Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)
Applications:
- ATEX-classified work environments: supporting bolting applications where equipment selection must meet applicable hazardous-area requirements.
- Industrial maintenance: tightening and removing large fasteners on machinery and equipment assemblies.
- Heavy machinery service: handling high-torque fastening tasks requiring 1" drive tooling.
- Equipment repair: supporting maintenance work involving large threaded connections.
- Field service operations: performing high-output pneumatic bolting work with an appropriately sized compressed-air system.
FAQs:
- Q: What drive size does the Ingersoll Rand 3942B2TIEX use?
A: The 3942B2TIEX is specified with a 1" drive size. Use compatible 1" drive impact-rated sockets selected for the application. - Q: What is the maximum torque rating of the 3942B2TIEX?
A: The supplied manufacturer catalog information lists the tool with a maximum torque rating of 3,250 ft-lbs. - Q: What does ATEX mean for this impact wrench?
A: ATEX identifies the tool configuration for applications where equipment designed for potentially explosive atmospheres may be required. The specific hazardous-area suitability should be confirmed against the manufacturer documentation and site requirements before use. - Q: What does the 5,000 RPM specification represent?
A: The 5,000 RPM figure is the listed free speed, meaning the rotational speed of the impact wrench while operating without a fastening load. - Q: What should be checked before selecting the 3942B2TIEX?
A: Confirm that the ATEX configuration is suitable for the intended work environment, verify compatibility with 1" drive tooling, and ensure the compressed-air system is appropriate for the application.
| SKU | Description | Actuation | Details | Handle | rpm | bpm | ft-lb (Nm) | ft-lb (Nm) | lb (kg) | in (mm) | in (mm) | cfm (l/s) | m/s² (K²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1" - No. 5 | |||||||||||||
| 3942A2Ti | 1" Square | Outside Trigger | Thru-Hole | D-Handle | 5000 | 850 | 3250 (4406) | 1000-2100 (1356-2848) | 22.6 (10.5) | 14.3 (362) | 2.3 (59) | 95 (2690) | 16.9 (4.6) |
| 3942B2Ti | 1" Square | Inside Trigger | Thru-Hole | D-Handle | 5000 | 850 | 3250 (4406) | 1000-2100 (1356-2848) | 22.6 (10.5) | 14.3 (362) | 2.3 (59) | 95 (2690) | 16.9 (4.6) |
| 3942B2TiEX | 1" Square | Inside Trigger | Thru-Hole | D-Handle | 5000 | 850 | 3250 (4406) | 1000-2100 (1356-2848) | 22.6 (10.5) | 14.3 (362) | 2.3 (59) | 95 (2690) | 16.9 (4.6) |
| 3942A1TI | No. 5 Spline | Outside Trigger | Thru-Hole | D-Handle | 5000 | 850 | 3250 (4406) | 1000-2100 (1356-2848) | 22.6 (10.5) | 14.3 (362) | 2.3 (59) | 95 (2690) | 16.9 (4.6) |
| 3942B1Ti | No. 5 Spline | Inside Trigger | Thru-Hole | D-Handle | 5000 | 850 | 3250 (4406) | 1000-2100 (1356-2848) | 22.6 (10.5) | 14.3 (362) | 2.3 (59) | 95 (2690) | 16.9 (4.6) |
Ingersoll Rand 3942B2TIEX Impact Wrench Parts List
Looking for more information about Ingersoll Rand Impact Wrench? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Air Impact Wrenches, please call (800) 608-5210 or email info@intlairtool.com
