Ingersoll Rand 3940A1Ti Super Duty Air Impact Wrench combines a No. 5 drive size with 6,000 RPM free speed and up to 2,500 ft-lbs of maximum torque for substantial industrial bolting work. Its drive configuration is intended for compatible No. 5 tooling, making drive compatibility an important consideration when selecting this model for large threaded connections.
For maintenance and repair operations requiring high pneumatic impact output, the 3940A1Ti provides the combination of 2,500 ft-lbs maximum torque and 6,000 RPM free speed needed for demanding fastening and removal tasks. Buyers should match the tool with accessories specifically designed for its No. 5 drive and confirm that the compressed-air system is properly sized for the intended application.
Type: Air Impact Wrench | Model: 3940A1Ti | Drive Size: No. 5 | Free Speed: 6,000 RPM | Maximum Torque: 2,500 ft-lbs
Features:
- No. 5 drive configuration supports compatible tooling for substantial industrial bolting applications.
- 2,500 ft-lbs maximum torque provides high output for demanding large-fastener work.
- 6,000 RPM free speed supports efficient fastener rundown during pneumatic bolting operations.
- Pneumatic impact operation delivers repeated rotational force for tightening and loosening substantial threaded connections.
- High torque capacity makes the 3940A1Ti suitable for applications that exceed the practical working range of smaller impact wrench platforms.
Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)
Applications:
- Large-fastener installation and removal in industrial maintenance operations.
- Heavy machinery service requiring compatible No. 5 drive tooling.
- Maintenance and repair of substantial mechanical assemblies and bolted connections.
- High-output pneumatic fastening tasks in manufacturing and equipment service environments.
- Field maintenance where compatible drive accessories and a suitable compressed-air supply are available.
FAQs:
- Q: What drive size does the Ingersoll Rand 3940A1Ti use?
A: The supplied manufacturer catalog data identifies the 3940A1Ti with a No. 5 drive. Tooling should be selected specifically for compatibility with this drive configuration. - Q: Is the No. 5 drive the same as a standard 1" square drive?
A: The manufacturer data identifies this model specifically by its No. 5 drive size. Buyers should not assume compatibility with standard 1" square-drive sockets unless that compatibility is confirmed in the manufacturer documentation. - Q: What is the maximum torque rating of the 3940A1Ti?
A: The supplied manufacturer catalog information lists the tool with a maximum torque rating of 2,500 ft-lbs. - Q: What does the 6,000 RPM specification represent?
A: The 6,000 RPM figure is the listed free speed, which refers to the rotational speed of the impact wrench while operating without a fastening load. - Q: What should be checked before ordering the 3940A1Ti?
A: Confirm that the No. 5 drive configuration matches the tooling required for the application and verify that the compressed-air system is appropriately sized for the tool.

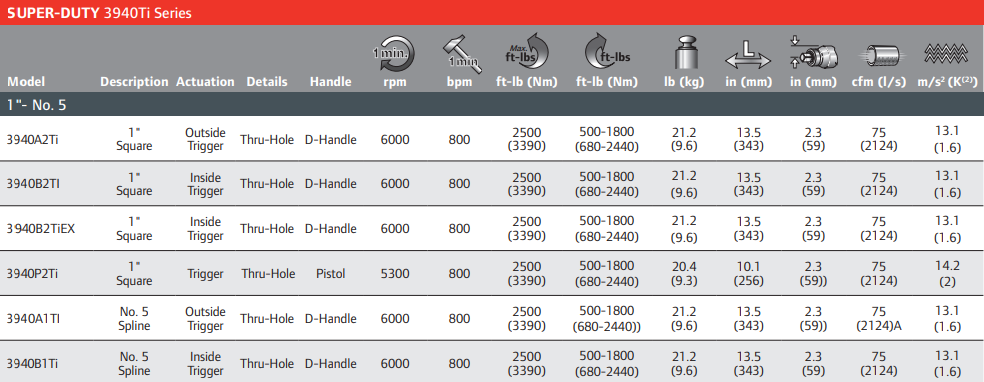

| SKU | Description | Actuation | Details | Handle | rpm | bpm | ft-lb (Nm) | ft-lb (Nm) | lb (kg) | in (mm) | in (mm) | cfm (L/s) | m/s² (K²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1"- No. 5 | |||||||||||||
| 3940A2Ti | 1" Square |
Outside Trigger |
Thru-Hole | D-Handle | 6000 | 800 | 2500 (3390) |
500-1800 (680-2440) |
21.2 (9.6) |
13.5 (343) |
2.3 (59) |
75 (2124) |
13.1 (1.6) |
| 3940B2TI | 1" Square |
Inside Trigger |
Thru-Hole | D-Handle | 6000 | 800 | 2500 (3390) |
500-1800 (680-2440) |
21.2 (9.6) |
13.5 (343) |
2.3 (59) |
75 (2124) |
13.1 (1.6) |
| 3940B2TiEX | 1" Square |
Inside Trigger |
Thru-Hole | D-Handle | 6000 | 800 | 2500 (3390) |
500-1800 (680-2440) |
21.2 (9.6) |
13.5 (343) |
2.3 (59) |
75 (2124) |
13.1 (1.6) |
| 3940P2Ti | 1" Square |
Trigger | Thru-Hole | Pistol | 5300 | 800 | 2500 (3390) |
500-1800 (680-2440) |
20.4 (9.3) |
10.1 (256) |
2.3 (59) |
75 (2124) |
14.2 (2) |
| 3940A1TI | No. 5 Spline |
Outside Trigger |
Thru-Hole | D-Handle | 6000 | 800 | 2500 (3390) |
500-1800 (680-2440)) |
21.2 (9.6) |
13.5 (343) |
2.3 (59)) |
75 (2124)A |
13.1 (1.6) |
| 3940B1Ti | No. 5 Spline |
Inside Trigger |
Thru-Hole | D-Handle | 6000 | 800 | 2500 (3390) |
500-1800 (680-2440) |
21.2 (9.6) |
13.5 (343) |
2.3 (59) |
75 (2124) |
13.1 (1.6) |
Ingersoll Rand 3940A1Ti Impact Wrench Parts List
