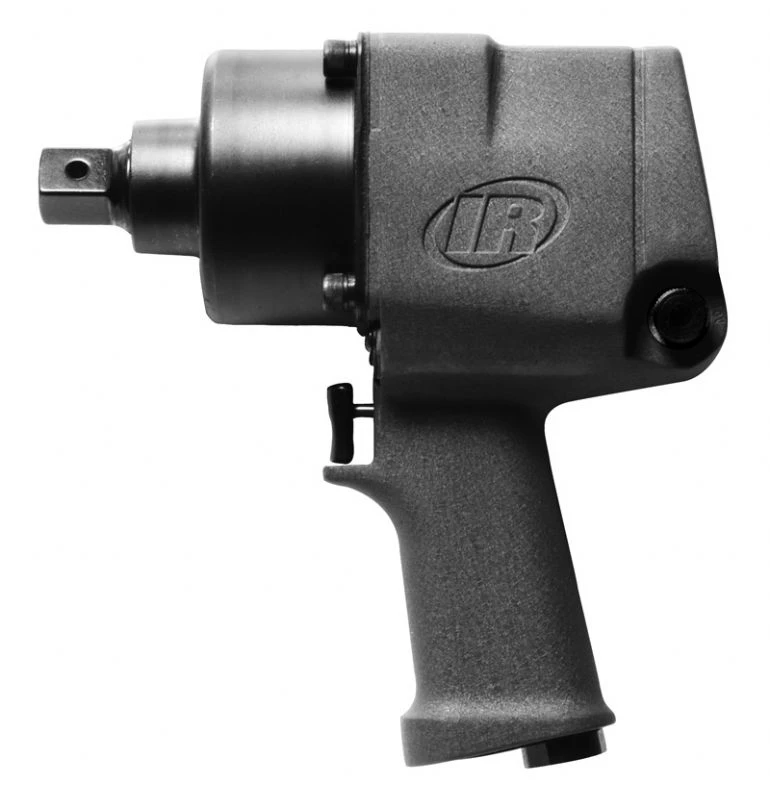

Ingersoll Rand 1720P1 Pistol Grip Air Impact Wrench | 3/4" Square Drive | 5500 RPM | 1000 (ft-lbs) Max Torque

Ingersoll Rand 1720P1 Pistol Grip Air Impact Wrench is a heavy-duty pneumatic bolting tool built around a 3/4" square drive for demanding fastening and removal work. It delivers up to 1,000 ft-lbs (1,360 Nm) of maximum torque with a 5,500 RPM free speed, giving operators substantial impact performance in a comparatively compact pistol-grip configuration.

The 1720P1 uses Ingersoll Rand's jumbo hammer mechanism to transfer repeated impact energy through the drive, while a steel hammer case protects the working mechanism. Pressure-feed lubrication supplies lubricant to the impact mechanism, and an integral muffler helps manage exhaust noise. At 12.54 lb (5.65 kg) and 7.63" (194 mm) long, the tool provides 3/4" drive capability without the longer profile of a D-handle configuration.

Type: Air Impact Wrench | Performance Classification: Heavy-Duty | Model: 1720P1 | Handle: Pistol Grip | Actuation: Trigger | Drive Size: 3/4" | Drive Type: Square | Drive Detail: Thru-Hole | Maximum Torque: 1,000 ft-lbs (1,360 Nm) | Working Torque Range: 200–600 ft-lbs (271–814 Nm) | Free Speed: 5,500 RPM | Weight: 12.54 lb (5.65 kg) | Length: 7.63" (194 mm) | Side-to-Center Distance: 1.91" (48 mm) | Air Consumption at Load: 40 CFM (1,132 L/min) | Air Inlet: 3/8"

Features:

• Jumbo hammer mechanism delivers repeated impact energy for high-torque fastening and fastener removal.
• 3/4" square drive with thru-hole configuration provides the drive arrangement specified for compatible impact sockets and retention hardware.
• Steel hammer case protects the impact mechanism during demanding service and bolting work.
• Pressure-feed mechanism lubrication supplies lubricant to the impact mechanism to support reliable operation.
• Integral muffler helps control exhaust noise generated during pneumatic tool operation.
• Trigger actuation provides straightforward control from the pistol-grip handle.
• 5,500 RPM free speed supports productive operation across the tool's specified fastening range.
• Compact 7.63" overall length helps the wrench fit into work areas where a longer D-handle impact wrench may be less convenient.

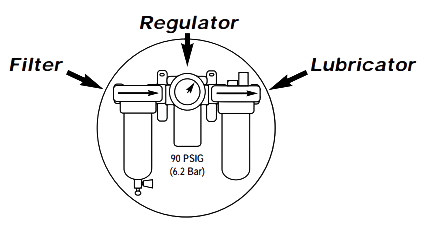

Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)

Applications:

• Industrial bolting applications requiring a 3/4" square-drive pneumatic impact wrench.
• Maintenance and repair work involving large threaded fasteners within the tool's specified torque range.
• Heavy equipment service where substantial impact torque is required for fastening and removal.
• Production and maintenance environments where continuous compressed-air power and a pistol-grip configuration are preferred.

FAQs:

• Q: What is the maximum torque of the Ingersoll Rand 1720P1?
  A: The 1720P1 is rated for up to 1,000 ft-lbs (1,360 Nm) of maximum torque. Its specified working torque range is 200–600 ft-lbs (271–814 Nm).
• Q: What drive does the 1720P1 use?
  A: It uses a 3/4" square drive with a thru-hole configuration.
• Q: What is the free speed of the 1720P1?
  A: Ingersoll Rand specifies a free speed of 5,500 RPM.
• Q: What type of impact mechanism is used in this wrench?
  A: The 1720 Series uses a jumbo hammer mechanism designed to transfer repeated rotational impacts through the drive for demanding fastening and removal work.
• Q: How large is the 1720P1?
  A: The manufacturer catalog lists the 1720P1 at 7.63" (194 mm) long with a weight of 12.54 lb (5.65 kg).
• Q: What air inlet does the 1720P1 require?
  A: The manufacturer specifies a 3/8" air inlet. The catalog also lists air consumption at load at 40 CFM (1,132 L/min).

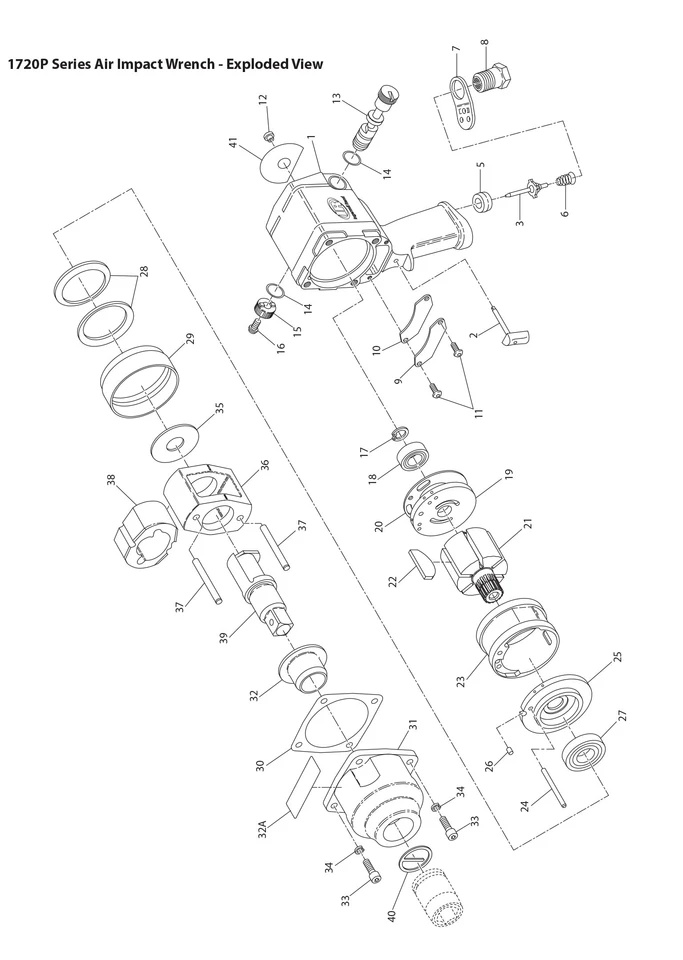

Ingersoll Rand 1720P3 Impact Wrench Parts List
