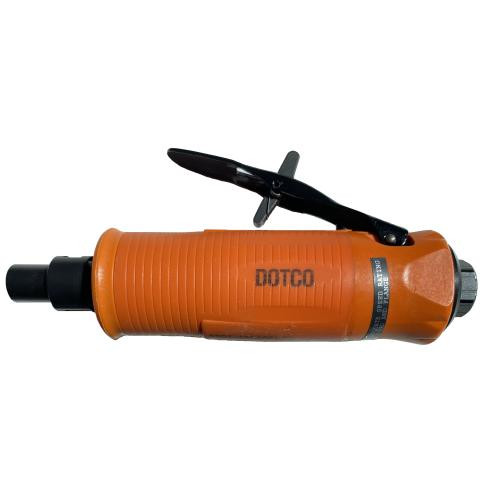

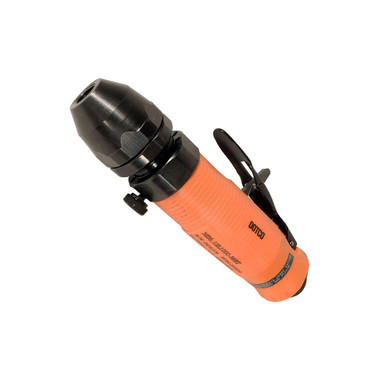

Dotco 12L1080-36OH Inline Die Grinder | 12-10 Series | 0.3 HP | 30000 RPM | 1/4" Collet | Rear Exhaust

When small-area grinding, deburring, and die/mold cleanup call for a straight, controlled air tool, the Dotco 12L1080-36OH Inline Die Grinder delivers compact material removal power in the 12-10 Series. Its 0.3 HP (0.22 kW) motor and 30,000 RPM free speed support fast burr work, edge cleanup, and mounted wheel finishing where larger grinders are too bulky. The 1/4" 300 Series collet accepts common rotary accessories, while the inline body helps the operator guide the tool along casting edges, machined surfaces, and tight detail areas.

The rear exhaust OH configuration includes a 4 ft Overhose, an exhaust hose used to help suppress noise and route spent air away from the work area. With a 0.88 lb tool weight and 6" length, this Dotco die grinder is sized for controlled bench work, fabrication touch-up, tool room finishing, and maintenance deburring. It is rated for use at 90 PSI (620 kPa) and supports abrasive capacity up to a 1/2" carbide burr or 1" mounted wheel when the accessory speed rating is correct.

Type: Inline Die Grinder | Series: 12-10 Series | Model: 12L1080-36OH | Power: 0.3 HP (0.22 kW) | Free Speed: 30,000 RPM | Collet Size: 1/4" | Collet Series: 300 Series | Exhaust: Rear with 4 ft Overhose | Abrasive Capacity: 1/2" Carbide Burr, 1" Mounted Wheel | Housing: Composite | Weight: 0.88 lb | Length: 6" | Air Inlet: 1/4" NPT | Air Pressure: 90 PSI (620 kPa) | Minimum Hose I.D.: 1/4" (6.4 mm)

Features:

• Durable composite housing keeps the tool compact while supporting regular grinding and deburring work.
• Inline configuration gives the operator direct control for following edges, working into pockets, and guiding burrs across small surface areas.
• 30,000 RPM free speed helps carbide burrs and mounted wheels cut efficiently on compatible materials.
• Rear exhaust OH version includes 4 ft of Overhose for additional noise suppression.
• 1/4" 300 Series collet works with common die grinder accessories within the listed abrasive capacity.
• Compact 6" body helps access confined areas where larger right angle or wheel grinders may not fit.
• Standard equipment includes the applicable collet and collet wrenches for basic setup.
• Optional Extended Collet Guard 01-1047 is supplied separately for applications that require additional accessory guarding.

Made in USA:

Applications:

• Tool and die work — cleaning parting lines, refining mold details, and shaping small features with compatible carbide burrs.
• Metal fabrication — removing burrs from brackets, tabs, slots, and machined edges after cutting, drilling, or milling.
• Industrial maintenance and MRO — touching up worn edges, cleaning small castings, and preparing surfaces during equipment repair.
• Automotive and fleet repair — gasket surface cleanup, casting flash removal, and careful deburring around engine, brake, and chassis components.
• General shop and DIY garage work — controlled grinding and edge finishing where a full-size grinder would remove too much material or limit visibility.

FAQs:

• Q: What does the “OH” suffix mean on the 12L1080-36OH?
  A: The OH version includes 4 ft of Overhose for additional noise suppression. On this rear exhaust grinder, the overhose helps manage exhaust air while the tool is running.
• Q: What accessories can be used with this Dotco die grinder?
  A: This model uses a 1/4" 300 Series collet and is listed for up to a 1/2" carbide burr or 1" mounted wheel. Always confirm the accessory shank size, abrasive type, and maximum operating speed before mounting it.
• Q: What air setup does this grinder require?
  A: The tool is performance rated at 90 PSI (620 kPa) and requires a minimum 1/4" hose I.D. Use clean, regulated, lubricated air through a properly sized FRL to protect the motor and maintain consistent speed.
• Q: How is this different from the 12L1080-36?
  A: The main working specs are the same: 0.3 HP, 30,000 RPM, 1/4" collet, rear exhaust, 0.88 lb weight, and 6" length. The 12L1080-36OH adds the OH Overhose configuration for additional noise suppression.
• Q: Can this grinder be used with cut-off wheels or saw blades?
  A: No. Use only compatible die grinder accessories within the manufacturer’s abrasive capacity and speed requirements. Never mount saw blades or non-reinforced grinding wheels on this tool.

Looking for more information about Dotco Grinder? Click here to view the Catalog

Need help selecting the correct Dotco Grinders for your application? Please call (800) 608-5210 or email info@intlairtool.com
