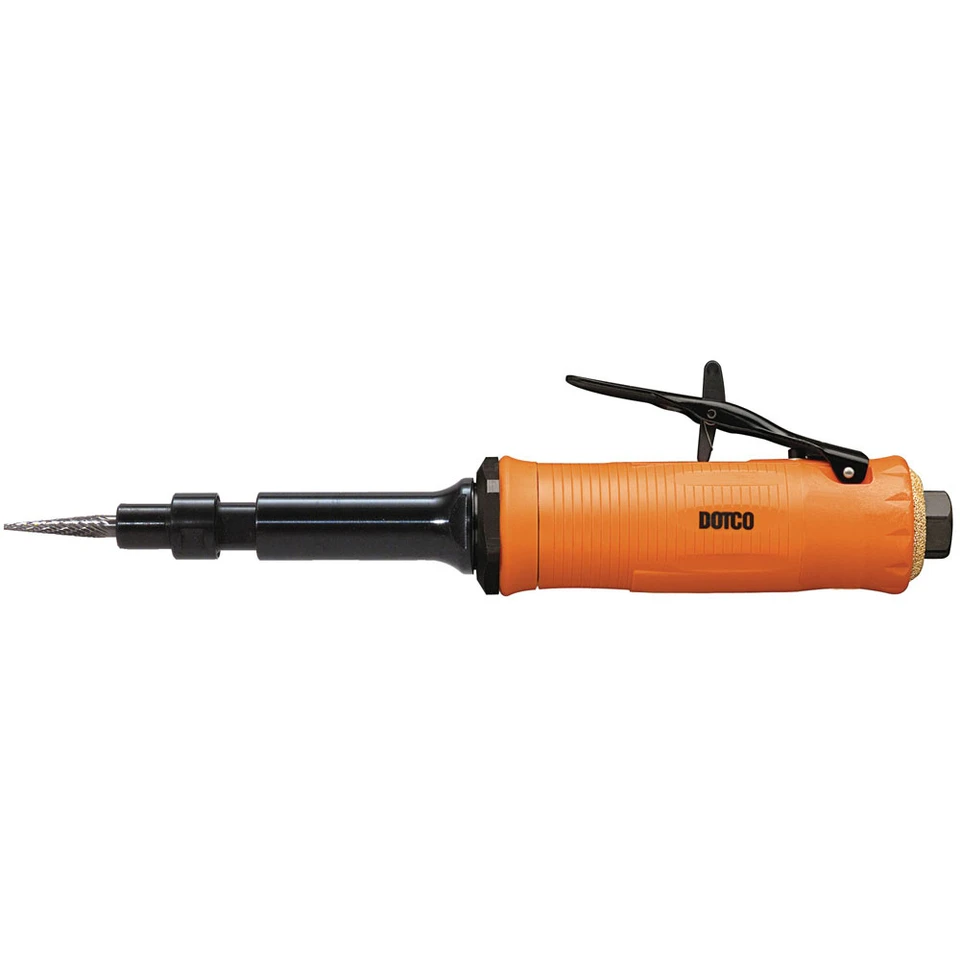

Dotco 12L1100-36 Inline Extended Grinder | 12-11 Series | 0.3 HP | 28,000 RPM | 1/4" Collet | Composite Housing | Front Exhaust

When a standard straight grinder cannot reach deep enough into the work area, the Dotco 12L1100-36 inline extended grinder gives technicians added access for controlled deburring, blending, and light material removal. This 12-11 Series tool combines a compact 0.3 HP / 0.22 kW pneumatic motor with 28,000 RPM free speed, giving operators the speed needed for compatible carbide burrs, mounted points, and mounted wheels in detailed finishing work. The 3" extension helps reach into pockets, ports, fixtures, and recessed components where shorter die grinders may be difficult to position.

The 1/4" collet accepts compatible 1/4" shank accessories, while the composite housing keeps the tool weight to 1.1 lb / 0.50 kg for better control during hand-guided grinding. A front exhaust configuration routes exhaust air near the working end of the tool, making this model a direct match for buyers who need the 3" extended 12-11 Series grinder in the front exhaust configuration rather than the rear exhaust version.

Type: Inline Extended Grinder | Brand: Dotco | Series: 12-11 Series | SKU: 12L1100-36 | Power: 0.3 HP / 0.22 kW | Free Speed: 28,000 RPM | Collet Size: 1/4" | Collet Series: 300 Series | Extension: 3" | Abrasive Capacity: 1/2" Carbide Burr, 1" Mounted Wheel | Housing: Composite | Exhaust: Front | Weight: 1.1 lb / 0.50 kg | Length: 8.9" / 226 mm | Air Inlet Size: 1/4" | Air Pressure Rating: 90 PSI / 620 kPa | Minimum Hose I.D.: 1/4" / 4.8 mm

Features:

• 3" extended housing helps operators reach into recessed surfaces, internal features, and hard-to-access work areas.
• 28,000 RPM free speed supports fast, controlled work with compatible rotary abrasive accessories.
• 0.3 HP pneumatic motor provides a compact power level for detailed deburring, finishing, and light grinding tasks.
• 1/4" 300 Series collet accepts compatible 1/4" shank carbide burrs and mounted accessories.
• Composite housing helps reduce tool weight for better hand control during precision material removal.
• Front exhaust configuration suits buyers who prefer exhaust discharge at the tool nose rather than through the rear housing.
• Multiple industrial bearings support low vibration and balanced operation.
• Supplied with the applicable collet and collet wrenches for standard setup.

Made in USA:

Applications:

• Machine shops: Deburring machined pockets, cleaning slots, and finishing internal edges after milling, drilling, or tapping operations.
• Metal fabrication: Blending small welds, removing sharp edges, and cleaning tight corners with compatible carbide burrs and mounted wheels.
• Automotive and engine service: Port cleanup, gasket-surface preparation, bracket finishing, and access work around crowded assemblies.
• Industrial maintenance: Touching up repaired components, removing burrs from replacement parts, and preparing small surfaces before reassembly.
• Toolroom and die maintenance: Reaching inside molds, dies, fixtures, and formed features where a shorter grinder body may limit access.

FAQs:

• Q: What is the difference between the Dotco 12L1100-36 and the 12L1180-36?
  A: The 12L1100-36 is the front exhaust version, while the 12L1180-36 is the rear exhaust version. Both are listed in the same 12-11 Series extended grinder table with 28,000 RPM, 1/4" collet size, 3" extension, and composite housing.
• Q: What accessories fit this grinder?
  A: This model uses a 1/4" collet and is listed for 1/2" carbide burrs and 1" mounted wheels. Always confirm the accessory shank size, workpiece compatibility, and RPM rating before use.
• Q: Why choose the 3" extended model instead of a standard inline grinder?
  A: The 3" extension gives extra reach into pockets, ports, cavities, and fixtured parts. It is useful when the abrasive needs to reach farther than the body length of a standard inline grinder allows.
• Q: What air pressure should this tool run at?
  A: Manufacturer data lists tool performance at 90 PSI / 620 kPa. Use clean, regulated, lubricated air and a minimum 1/4" I.D. hose as specified for this 12-11 Series grinder.
• Q: Does the Dotco 12L1100-36 include a collet?
  A: Yes. Standard equipment for this series includes the applicable collet and collet wrenches.
