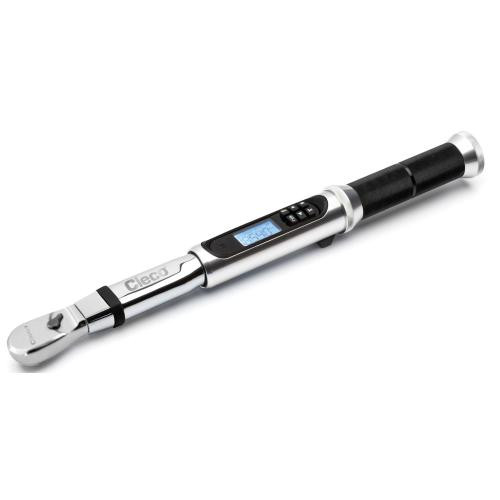

Cleco ETWB27FR Basic Electronic Torque Wrench | Fixed Head | 2 - 20 (ft-lbs) Torque Range

Built for controlled tightening in assembly, maintenance, and quality verification work, the Cleco ETWB27FR Basic Electronic Torque Wrench provides a compact 2 - 20 ft-lbs torque range for smaller fasteners where over-tightening can damage threads, gaskets, or components. The 1/4" square drive fits common low-torque sockets, while digital torque and angle tracking helps the user confirm the applied load instead of relying on feel alone.

This basic electronic torque wrench combines preset storage, LCD feedback, and alert functions for repeat fastening tasks. With 10 preset torque settings, the ETWB27FR helps technicians move between frequently repeated jobs more quickly, while the vibrating handle, buzzer, and LCD screen notify the user when the target torque is reached. It conforms with ISO 6789 and ASME B107.300-2022 standards and specifications for torque wrench performance.

Type: Basic Electronic Torque Wrench | SKU: ETWB27FR | Head Type: Fixed Head | Torque Range: 2 - 20 ft-lbs | Torque Range: 2.7 - 27 Nm | Drive Size: 1/4" Square Drive | Function Modes: Peak Torque, Angle, Peak Angle | Preset Settings: 10 | Accuracy: +/- 3% CW | Standards: ISO 6789, ASME B107.300-2022

Features:

• Torque accuracy of +/- 3% CW applies to the upper 80% of wrench capability.
• 10 available preset torque settings help users quickly access frequently repeated applications.
• 3 function modes include peak torque, angle, and peak angle for fastening and verification flexibility.
• Digitally tracks torque and angle measurements for clearer process control than a mechanical scale alone.
• Vibrating handle, buzzer, and LCD screen alert the user when the target torque is reached.
• 1/4" square drive supports low-torque socket work on smaller fasteners and assemblies.
• Conforms with ISO 6789 and ASME B107.300-2022 standards and specifications.

Made in USA:

Applications:

• Assembly workstations — applying repeatable torque on smaller bolted joints where controlled tightening matters.
• Automotive and fleet maintenance — tightening low-torque fasteners on interior, trim, sensor, and light mechanical components.
• Industrial MRO — checking or applying torque on covers, guards, brackets, and service-access hardware.
• Quality control and torque verification — using peak torque, angle, or peak angle modes to confirm fastening results.
• Repair benches and technical service departments — handling precision socket work without stepping up to a larger torque wrench.

FAQs:

• Q: What torque range does the Cleco ETWB27FR cover?
  A: The ETWB27FR covers 2 - 20 ft-lbs, or approximately 2.7 - 27 Nm. This range is suited for smaller fasteners and controlled assembly tasks where a high-capacity torque wrench would be too coarse.
• Q: What does electronic torque tracking do?
  A: Electronic torque tracking digitally measures the torque applied during tightening. The wrench also provides feedback through the handle, buzzer, and LCD screen when the target torque is reached.
• Q: What are the three function modes?
  A: The ETWB27FR offers peak torque, angle, and peak angle modes. These modes help users handle both standard torque applications and angle-based tightening checks.
• Q: What drive size does this wrench use?
  A: This model uses a 1/4" square drive. Use sockets and compatible attachments rated for the torque range and fastener type being serviced.
• Q: Is this a pneumatic tool?
  A: No. This is an electronic hand torque wrench, not an air-powered tool, so it does not require an air compressor, hose, or FRL unit.

Looking for more information about Cleco Torque Wrench? Click here to view the Catalog

Need help selecting the correct Cleco Torque Wrenches for your application? Please call (800) 608-5210 or email info@intlairtool.com
