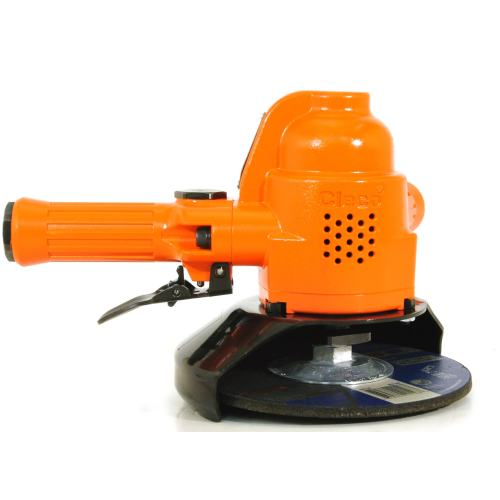

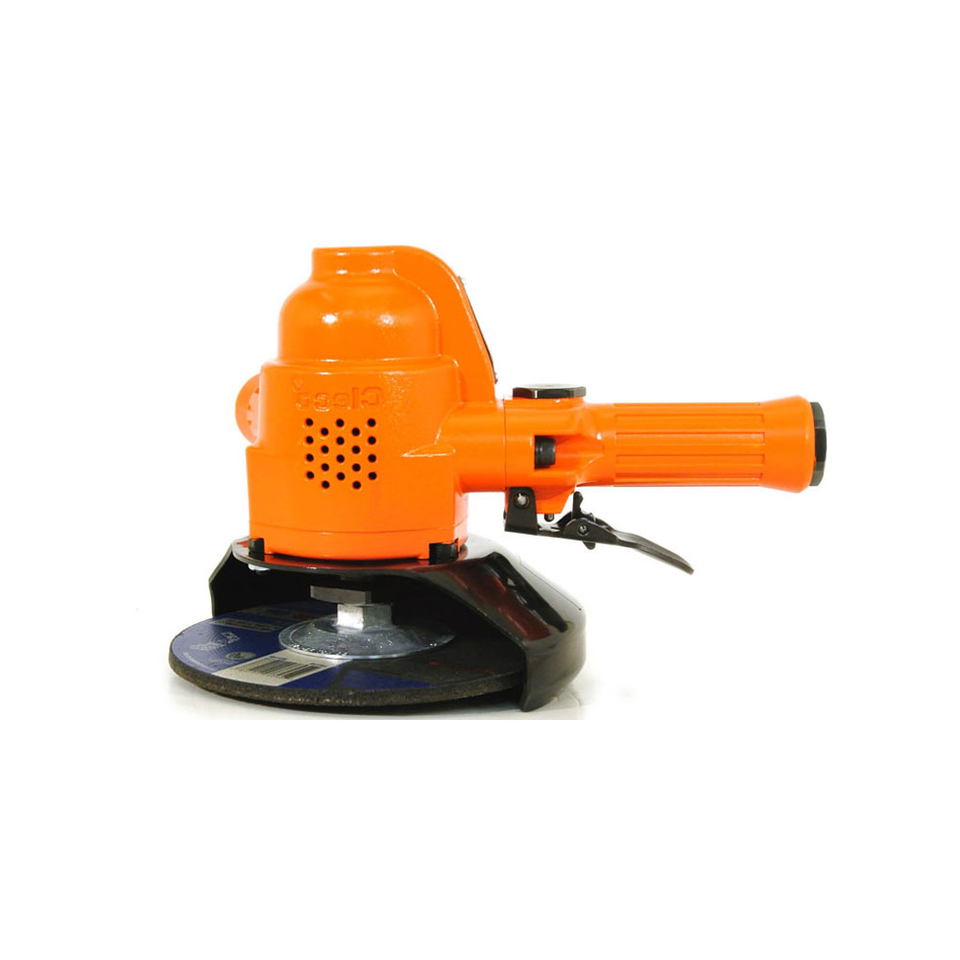

Cleco 3060AVL-07 Vertical Grinder | 3060 Series | Aluminum Housing | 3.0 HP | 6000 RPM | Side Exhaust

Built for high-output wheel grinding on steel plate, weldments, castings, and large fabricated parts, the Cleco 3060AVL-07 delivers vertical grinder power in a compact 3060 Series configuration. Its 3.0 HP class motor provides the force needed for sustained material removal, while the 6,000 RPM free speed supports productive grinding when paired with a properly rated Type 27 abrasive. The 7" abrasive capacity gives operators more wheel coverage than smaller grinders, helping remove weld buildup, scale, and excess stock across broad metal surfaces.

This 3060 Series vertical grinder uses an aluminum housing to reduce tool weight while maintaining a strong body for shop and field grinding work. The vertical layout positions the operator above the wheel for controlled downward pressure, and the side exhaust helps direct spent air away from the work area. Type 27 wheels are depressed-center grinding wheels commonly used for surface grinding, edge blending, and weld cleanup when the tool, guard, wheel size, and RPM rating all match.

Type: Vertical Grinder | Series: 3060 Series | Model: 3060AVL-07 | Motor: 3.0 HP | Free Speed: 6,000 RPM | Abrasive Capacity: 7" Type 27 | Spindle Size: 5/8"-11 External | Housing Material: Aluminum | Exhaust: Side | Air Inlet: 1/2" | Minimum Hose I.D.: 3/4" / 19 mm | Rated Air Pressure: 90 PSI / 620 kPa | Tool Weight: 9.7 lbs

Features:

• Powerful, governed motor helps maintain usable grinding speed as pressure changes during material removal.
• 7" Type 27 wheel capacity provides broad grinding coverage for weld cleanup, scale removal, and surface blending.
• 6,000 RPM free speed supports efficient grinding when used with properly rated reinforced abrasive wheels.
• Vertical grinder body gives operators controlled downward leverage on large metal surfaces and heavy workpieces.
• 5/8"-11 external spindle fits common threaded grinding wheel hardware used with compatible Type 27 wheel setups.
• Side exhaust directs air away from the immediate grinding path to help keep debris from blowing across the work surface.
• Aluminum housing helps reduce handling weight while supporting regular use in fabrication, maintenance, and repair environments.

Made in USA:

Applications:

• Welding and fabrication shops — grinding weld beads, cleaning bevels, blending plate edges, and preparing steel surfaces before finishing or inspection.
• Industrial maintenance and MRO — removing corrosion, resurfacing worn metal parts, and cleaning machinery bases during plant repair work.
• Foundry and casting cleanup — grinding excess material, flashing, parting lines, and rough areas from cast steel or iron components.
• Ship repair and structural steel work — working on plate, frames, brackets, and large welded assemblies where vertical grinder control is useful.
• Metalworking and repair shops — general-purpose grinding, deburring, and surface preparation on fixtures, assemblies, and large workpieces.

FAQs:

• Q: What type of abrasive wheel does the Cleco 3060AVL-07 use?
  A: This model is configured for 7" Type 27 depressed-center grinding wheels. Always confirm wheel diameter, spindle thread, guard compatibility, and wheel RPM rating before installation.
• Q: What does Type 27 mean?
  A: Type 27 refers to a depressed-center grinding wheel shape. The depressed center allows the wheel to sit properly on compatible grinder flanges while giving clearance for grinding at typical working angles.
• Q: What air setup is required for this grinder?
  A: Cleco rates the tool at 90 PSI / 620 kPa and lists a minimum hose I.D. of 3/4" / 19 mm. Use an air system capable of maintaining pressure at the tool while supplying enough volume for a 3 HP class pneumatic grinder.
• Q: Can this grinder use cup wheels?
  A: This 3060AVL-07 configuration is listed for 7" Type 27 wheels. For cup wheel grinding, use a Cleco model specifically configured with the correct cup-wheel guard and wheel compatibility.
• Q: Is this grinder appropriate for home garage use?
  A: It is primarily a production and industrial maintenance grinder. Most home garages do not have the air volume, hose size, or abrasive safety setup needed to run a 3 HP class vertical grinder correctly.
