Chicago Pneumatic CPWE S04N 1ph Sump Pump is a compact, single-phase submersible electric pump designed for standard drainage applications, as indicated by its "S" (Slurry/Standard) designation and key performance metrics. With a 0.5 hp rated output, it provides a dependable maximum flow of 58.1 US gpm (gallons per minute) and can achieve a maximum head (vertical lift) of 32.8 feet. Its construction is robust, featuring a low net weight of 22.1 lbs, which, combined with its compact dimensions, makes it highly portable and easy to deploy in confined spaces or move between job sites.
The CPWE S04N is built for submersion and tight access. The pump unit measures 14.7 inches in height and 10.9 inches in width, with a diameter of 9.5 inches. This relatively narrow diameter allows it to fit into small sumps, trenches, and manholes. It is equipped with a 2-inch discharge connection for efficient removal of water and liquids. Importantly, it is capable of handling solids up to 1 inch in size, making it suitable for pumping dirty water that may contain small debris, though it is not intended for the high solid content of a dedicated sludge pump. The balance of its low-weight portability (22.1 lbs) and respectable performance (32.8 ft heads) makes it an excellent choice for contractors requiring a powerful, yet manageable, pump for various dewatering tasks, such as draining excavations, basements, and sumps where moderate amounts of solids may be present.

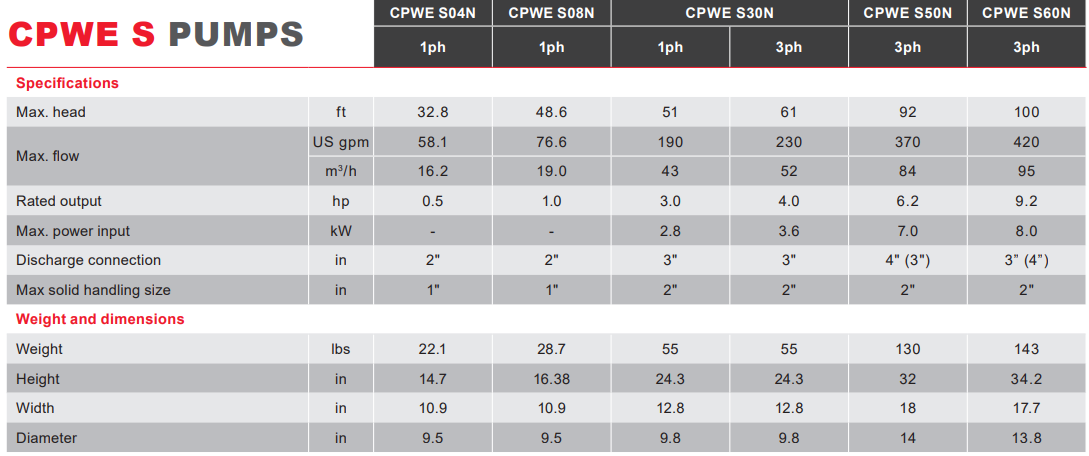

Type: Pump | Discharge (in.): 2 | Diameter (in.): 9.5 | Max Head (ft.): 32.8 | Height (in.): 14.7 | Width (in.): 10.9 | Application: Slurry and Dirty Water Pumping, Utility Work
Feautres:
- Solid Handling Capacity: Designed to handle solids up to 1 inch (25 mm) in size, making it suitable for environments with sand, mud, and small debris
- Motor Protection: Equipped with Class F motors featuring thermal switches in each winding, providing protection against overheating and ensuring reliable operation
- Corrosion-Resistant Construction: The pump is constructed with materials that offer high corrosion resistance, ensuring durability and longevity even in challenging environments
- Improved Cable Sealing: Features enhanced cable sealing to prevent water leakage from cable entry points, ensuring safe and efficient operation
- Thermal Switches with Rib Design: The improved rib design of the thermal switches offers external cooling to the motor, extending its running time and enhancing performance
APPLICATIONS:
- Slurry and Dirty Water Pumping: Its key feature is the ability to handle larger solids, up to 1 inch in size, making it suitable for water in trenches, manholes, and basements that may contain gravel and larger debris
- General Construction Sites: Widely used on construction sites for draining muddy foundations and flooded areas
- Utility Work: Effective for dewatering utility vaults and roadside ditches where a mixture of water and small rocks or sludge is present
- Portable Use: The 22.1 lbs weight and compact size ensure high portability for contractors moving frequently between jobs
Looking for more information about Chicago Pneumatic Sump Pump? Click here to view the Catalog.
For help selecting the correct Chicago Pneumatic Sump Pumps for your assembly application, call (800) 608-5210 or email info@intlairtool.com
