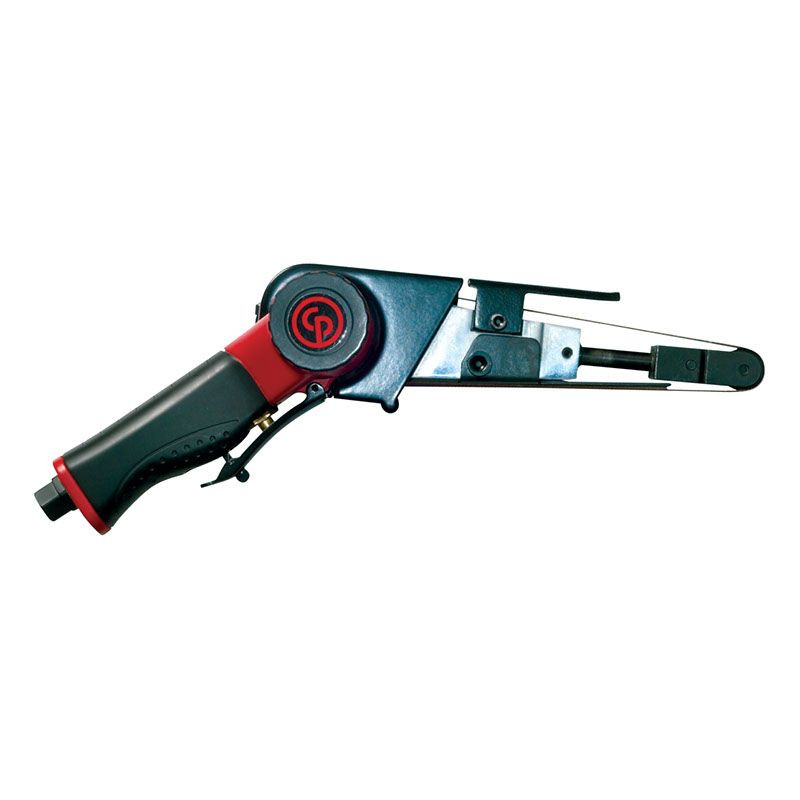

Chicago Pneumatic CP9780 Belt Sander | 0.51 HP | 20,000 RPM | 3/4" x 20.5 Belt Capacity

List Price: $549.30
$329.58
(You save $219.72 )
Availability:
Usually Ships Within 2 to 4 Business Days | Contact Customer Service for Details
SKU:
6151939780
Shipping:
Calculated at Checkout
Weight:
4.90 LBS
Condition:
New
UPC:
15451688424
Adding to cart… The item has been added
Description


Chicago Pneumatic CP9780 Belt Sander is highly effective tool for removing roughness and preparing woodwork. This sander is excellent for paint removal, smoothing and rust removal in limited space applications. It is also useful for less aggressive tools in the process like random orbit and finishing sanders. Chicago Pneumatic 6151939780 Belt Sander features powerful 0.51 hp air motor which delivers true 20,000 rpm performance in a compact package, maximizing both efficiency and economy. Chicago Pneumatic CP9780 Sander is suitable for high production environments such as those on production/assembly lines, where high durability is required and the tools are used frequently. This pneumatic tool is lightweight and its balanced design maximizes accessibility while minimizing operator fatigue.

Type: Belt Sander | Free Speed (RPM): 20000 | Length (in.): 14.96 | Length (mm): 380 | Air Consumption @ Free Speed (CFM): 14 | Air Consumption @ Free Speed (l/s): 6.9 | Air Consumption @ Load (CFM): 63 | Air Consumption @ Load (l/s): 30 | Vibration Level (a): <2.5 | Sound Pressure (dbA): 90.5 | Air Inlet Size (in.): 1/4 | Power (HP): 0.51 | Power (W): 380 | Min Hose Size (in.): 3/8 | Min Hose Size (mm): 10 | Belt Capacity (in.): 3/4x20-1/2 | Belt Capacity (mm): 20x520

Features & Benefits:

  • Quick-change belt replacement
  • Rubber molded grip
  • Adjustable sanding arm
  • Handle exhaust and swivel air inlet
  • Excellent for paint removal, smoothing and rust removal in limited space applications

industrial-tools-parts-breakdown.pngLooking for more information about Chicago Pneumatic Sander? Click here to view the Catalog.

For help selecting the correct Chicago Pneumatic Sanders for your assembly application, call (800) 608-5210 or email info@intlairtool.com

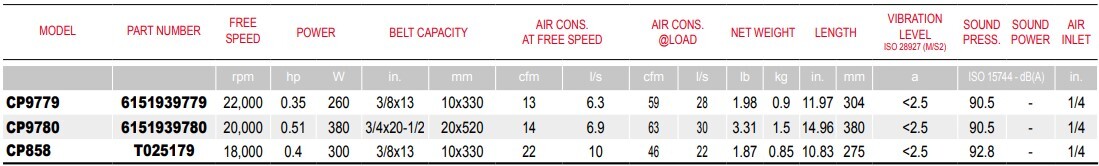

Specifications
Type:
Belt Sander
Free Speed (RPM):
20000
Length (in.):
14.96
Length (mm):
380
Air Consumption @ Free Speed (CFM):
14
Air Consumption @ Free Speed (l/s):
6.9
Air Consumption @ Load (CFM):
63
Air Consumption @ Load (l/s):
30
Vibration Level (a):
Sound Pressure (dbA):
90.5
Air Inlet Size (in.):
1/4
Power (HP):
0.51
Power (W):
380
Min Hose Size (in.):
3/8
Min Hose Size (mm):
10
Belt Capacity (in.):
3/4x20-1/2
Belt Capacity (mm):
20x520
Warranty Information
One year warranty against defects in materials and workmanship
