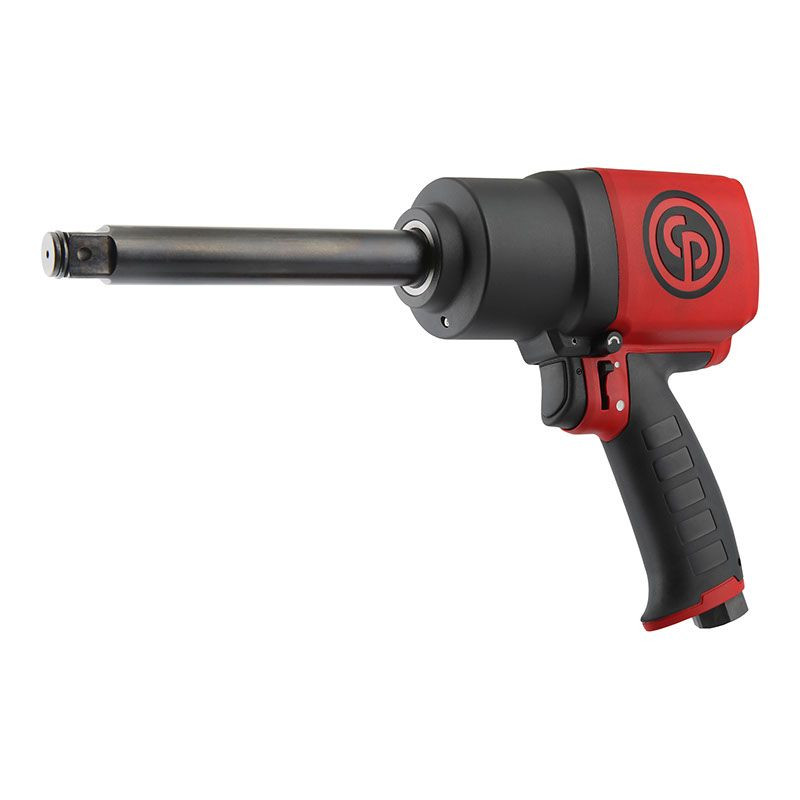

Chicago Pneumatic CP7769-6 Impact Wrench delivers smooth operation and extended durability. It is a versatile, compact, lightweight, and powerful tool ideal for all maintenance applications and general repairs. It features a composite motor housing and a twin hammer mechanism for improved performance and strength. The One-hand power adjustment and one-hand reverse system, combined with a variable speed trigger and a socket retainer ring with the hole retainer, gives the operator convenient control of the forward/reverse power. It comes with a 6-inch (152 mm) extended anvil. The ergonomic composite handle offers a durable and comfortable grip. With 1440 ft. lbs - 1950 Nm of maximum torque in reverse, this impact wrench provides full power, and a working torque range of 300 to 1080 ft./lbs. This product weighs 8.8 lbs, measures 14.4 inches long, and has a 3/4-inch output drive.

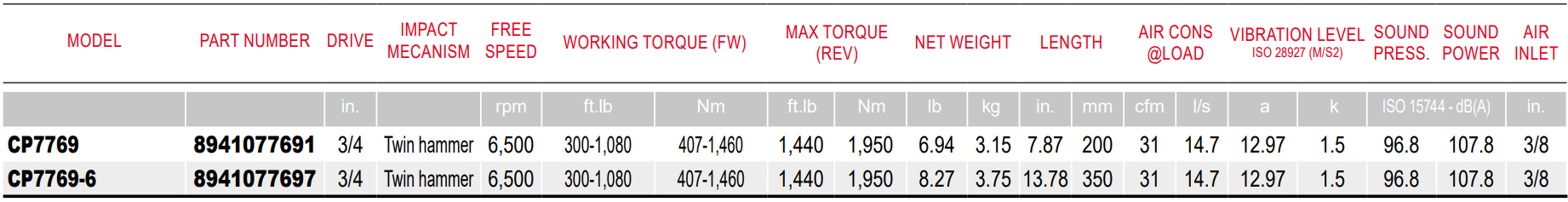

Type: Impact Wrench | Drive Size (in.): 3/4 | Impact Mecanism: Twin hammer | Free Speed (RPM): 6500 | Working Torque Range (fwd) (ft-lbs): 300-1,080 | Working Torque Range (fwd) (Nm): 407-1,460 | Max Reverse Torque (ft-lbs): 1440 | Max Reverse Torque (Nm): 1950 | Length (in.): 13.78 | Length (mm): 350 | Air Consumption @ Load (CFM): 31 | Air Consumption @ Load (l/s): 14.7 | Vibration Level (a): 12.97 | Vibration Level (k): 1.5 | Sound Pressure (dbA): 96.8 | Sound Power (dbA): 107.8 | Air Inlet Size (in.): 3/8 | Min Hose Size (in.): 3/8 | Min Hose Size (mm): 10
Features:
- Length = 13.8 in. / 350 mm
- All controls within reach
- Variable speed trigger
- One-hand power adjustment
- One-hand reverse system
- 1440 ft. lb.s / 1950 Nm of maximum torque
- Composite motor housing
- Twin hammer mechanism
- 360° swivel air inlet
- Socket retainer ring combined with a hole retainer
Benefits:
- Powerful motor and durable clutch
- Operator comfort
- Ideal for spring work, pinion nut, tractor pad removal, truck tire work, and major engine teardowns
Looking for more information about Chicago Pneumatic Wrench? Click here to view the Catalog.
For help choosing the correct Chicago Pneumatic Wrenches for your application, please call (800) 608-5210 or email info@intlairtool.com
