Chicago Pneumatic CP772H-6 Impact Wrench | 3/4" Drive | 1000 (ft-lbs) Max Torque Reverse | 4200 RPM

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Chicago Pneumatic

Chicago Pneumatic CP772H-6 Impact Wrench | 3/4" Drive | 1000 (ft-lbs) Max Torque Reverse | 4200 RPM

List Price: $1,130.48
$678.29
(You save $452.19 )
Availability:
Usually Ships Within 2 to 4 Business Days | Contact Customer Service for Details
SKU:
T024757
Shipping:
Calculated at Checkout
Weight:
12.00 LBS
Condition:
New
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description


Chicago Pneumatic CP772H-6 Impact Wrench delivers smooth operation and extended durability. It is a durable, easy-to-maintain, and powerful 3/4" impact wrench with ring retainer and 6" (152 mm) extended anvil, ideal for all general maintenance applications. It produces low noise and vibrations. It features a reliable DYNA-PACT oil bath clutch for improved performance. It offers great control with a single-handed reverse button with 4 settings of power. It also has a 360° air inlet swivel. The ergonomic handle offers a durable and comfortable grip. With 1000 ft.lbs - 1356 Nm of maximum torque in reverse, this impact wrench provides full power, and a working torque range of 150 - 700 ft. lbs. This product weighs 11.6 lbs, measures 15.5 inches long, and has a 3/4-inch output drive.

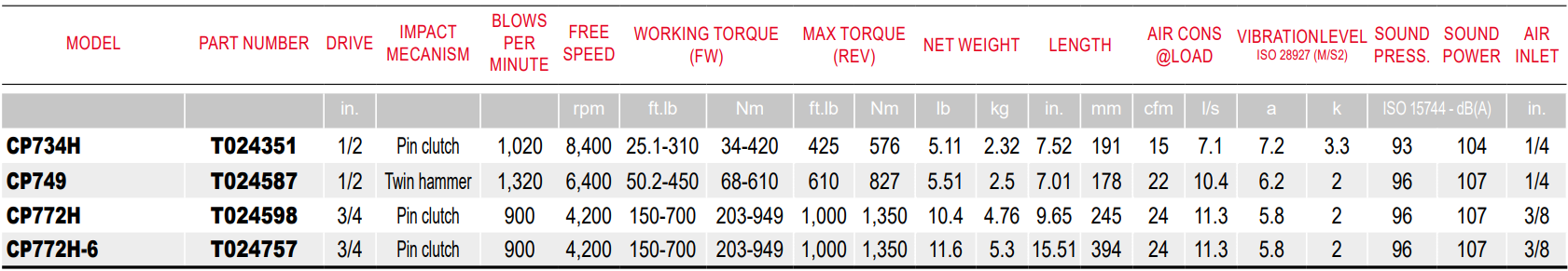

Type: Impact Wrench | Drive Size (in.): 3/4 | Impact Mecanism: Pin clutch | Blows Per Minute (BPM): 900 | Free Speed (RPM): 4200 | Working Torque Range (fwd) (ft-lbs): 150-700 | Working Torque Range (fwd) (Nm): 203-949 | Max Reverse Torque (ft-lbs): 1000 | Max Reverse Torque (Nm): 1350 | Length (in.): 15.51 | Length (mm): 394 | Air Consumption @ Load (CFM): 24 | Air Consumption @ Load (l/s): 11.3 | Vibration Level (a): 5.8 | Vibration Level (k): 2 | Sound Pressure (dbA): 96 | Sound Power (dbA): 107 | Air Inlet Size (in.): 3/8 | Min Hose Size (in.): 3/8 | Min Hose Size (mm): 10

Features:

  • 3/4" impact wrench for vehicle service
  • Plus 6" extended anvil
  • Pin clutch oil bath
  • One-handed push button forward/reverse with 4 positive power settings
  • Full power in reverse
  • New comfortable contoured handle grip
  • 360° air inlet swivel

Benefits:

  • General Maintenance
  • Smooth operation thanks to the DYNA-PACT clutch
  • Comfortable use thanks to low noise and vibration levels
  • Good durability

industrial-tools-parts-breakdown.pngLooking for more information about Chicago Pneumatic Wrench? Click here to view the Catalog.

For help choosing the correct Chicago Pneumatic Wrenches for your application, please call (800) 608-5210 or email info@intlairtool.com

Specifications
Type:
Impact Wrench
Drive Size (in.):
3/4
Impact Mecanism:
Pin clutch
Blows Per Minute (BPM):
900
Free Speed (RPM):
4200
Working Torque Range (fwd) (ft-lbs):
150-700
Working Torque Range (fwd) (Nm):
203-949
Max Reverse Torque (ft-lbs):
1000
Max Reverse Torque (Nm):
1350
Length (in.):
15.51
Length (mm):
394
Air Consumption @ Load (CFM):
24
Air Consumption @ Load (l/s):
11.3
Vibration Level (a):
5.8
Vibration Level (k):
2
Sound Pressure (dbA):
96
Sound Power (dbA):
107
Air Inlet Size (in.):
3/8
Min Hose Size (in.):
3/8
Min Hose Size (mm):
10
Warranty Information
Chicago Pneumatic warrants its tools to be free from defects inherent in their manufacture for a period of twelve months.
