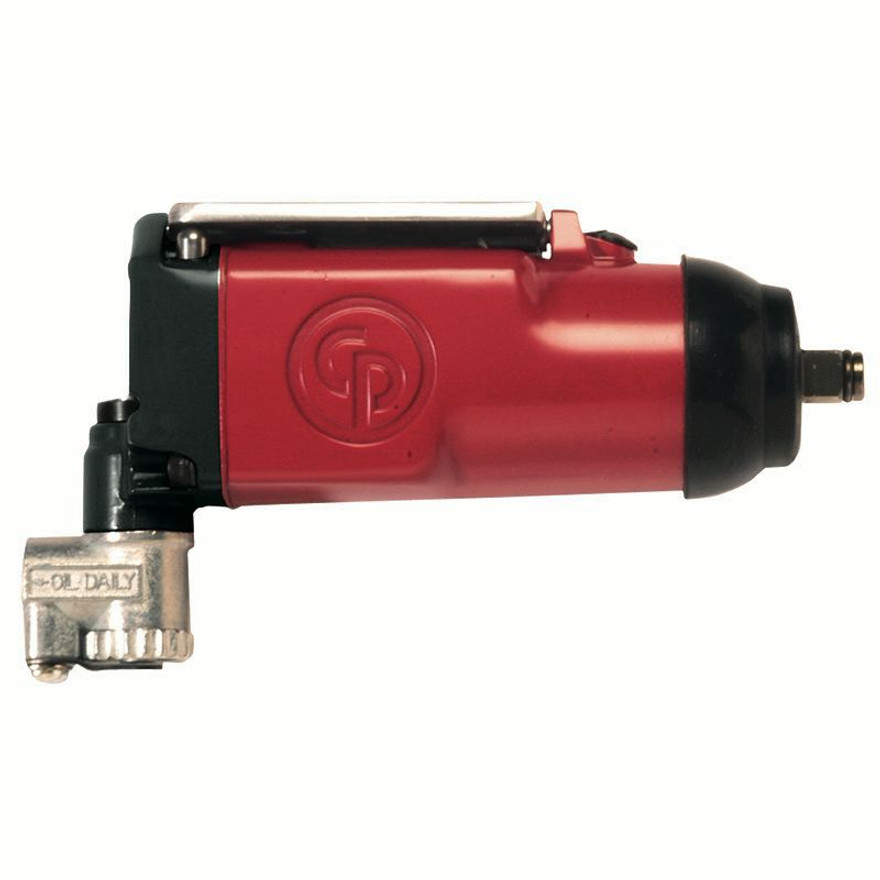

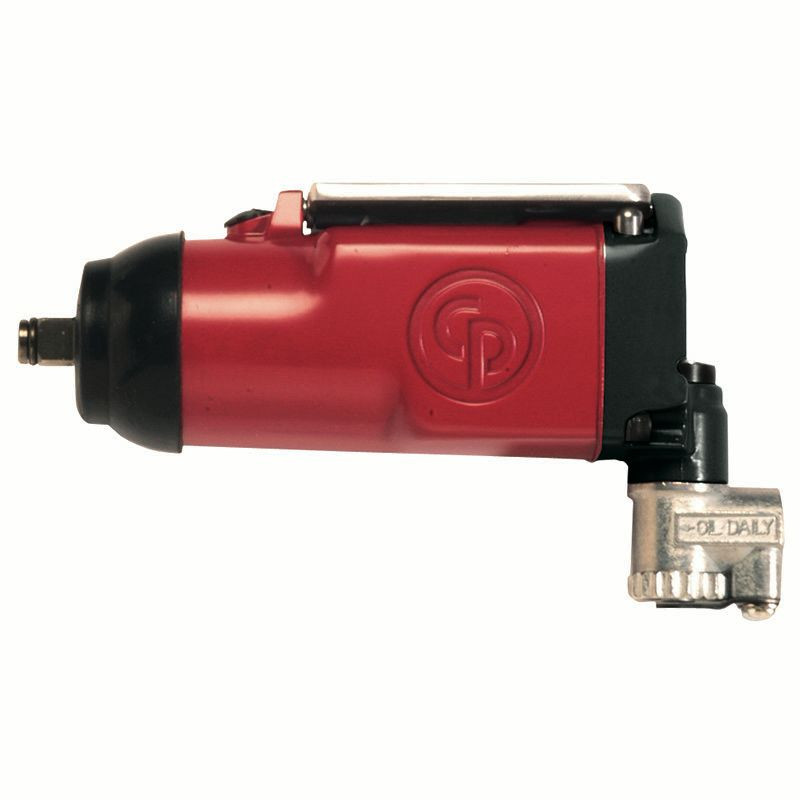

Chicago Pneumatic CP7722 Impact Wrench | 3/8" Drive | 90 (Ft-Lbs) Max Torque Reverse | 9500 RPM

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Chicago Pneumatic

Chicago Pneumatic CP7722 Impact Wrench | 3/8" Drive | 90 (ft-lbs) Max Torque Reverse | 9500 RPM

List Price: $372.63
$223.58
(You save $149.05 )
Availability:
Usually Ships Within 2 to 4 Business Days | Contact Customer Service for Details
SKU:
8941077220
Shipping:
Calculated at Checkout
Weight:
3.50 LBS
Condition:
New
Adding to cart… The item has been added
Description


Chicago Pneumatic CP7722 Impact Wrench is the synonym of efficiency & power. It is a compact and powerful 3/8" butterfly impact wrench, Ideal for general maintenance of small engines, compressors, and generators. It produces low noise and vibrations. The powerful rocking dog clutch offers smooth operations and durability. It offers 4 positive power settings and excellent maneuverability with a 360° swivel air inlet. The ergonomic handle offers a durable and comfortable grip. It is perfect for assembly/disassembly operations with limited access areas or vertical tightening. It offers 90 ft. lbs – 122Nm of maximum torque in reverse, and a working torque range of 5 - 65 ft. lbs. This product weighs 2.1 lbs, measures 6.3 inches long, and has a 3/8-inch output drive.

Type: Impact Wrench | Drive Size (in.): 3/8 | Impact Mechanism: Rocking dog | Free Speed (RPM): 9500 | Working Torque Range (fwd) (ft-lbs): 5.2-64.9 | Working Torque Range (fwd) (Nm): 7-88 | Max Reverse Torque (ft-lbs): 90 | Max Reverse Torque (Nm): 122 | Length (in.): 6.3 | Length (mm): 160 | Air Consumption @ Load (CFM): 10 | Air Consumption @ Load (l/s): 4.7 | Vibration Level (a): 4 | Vibration Level (k): 1.4 | Sound Pressure (dbA): 97 | Sound Power (dbA): 108 | Air Inlet Size (in.): 1/4 | Min Hose Size (in.): 3/8 | Min Hose Size (mm): 10

Features:

  • 3/8" butterfly impact wrench for general maintenance
  • Butterfly forward/reverse throttle
  • Rocking dog clutch for smooth operations and durability
  • 4 positive power settings
  • 360° air inlet swivel

Benefits:

  • Perfect for assembly/disassembly operation with limited access areas or vertical tightening
  • Comfort and smooth operation, thanks to the clutch benefits
  • Excellent maneuverability with the 360° swivel air inlet and a lightweight
  • Ideal for the general maintenance of small engines, compressors, and generators

industrial-tools-parts-breakdown.pngLooking for more information about Chicago Pneumatic Wrench? Click here to view the Catalog.

For help choosing the correct Chicago Pneumatic Wrenches for your application, please call (800) 608-5210 or email info@intlairtool.com

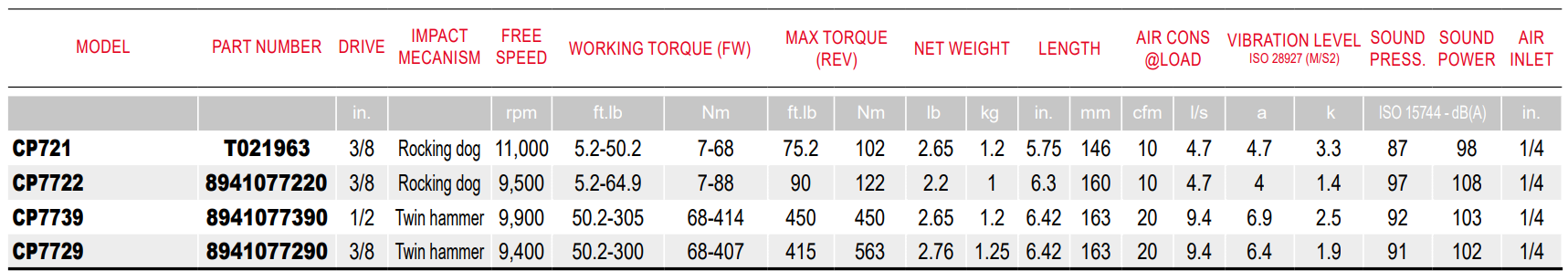

Specifications
Type:
Impact Wrench
Drive Size (in.):
3/8
Impact Mechanism:
Rocking dog
Free Speed (RPM):
9500
Working Torque Range (fwd) (ft-lbs):
5.2-64.9
Working Torque Range (fwd) (Nm):
7-88
Max Reverse Torque (ft-lbs):
90
Max Reverse Torque (Nm):
122
Length (in.):
6.3
Length (mm):
160
Air Consumption @ Load (CFM):
10
Air Consumption @ Load (l/s):
4.7
Vibration Level (a):
4
Vibration Level (k):
1.4
Sound Pressure (dbA):
97
Sound Power (dbA):
108
Air Inlet Size (in.):
1/4
Min Hose Size (in.):
3/8
Min Hose Size (mm):
10
Warranty Information
Chicago Pneumatic warrants its tools to be free from defects inherent in their manufacture for a period of twelve months.
