The Chicago Pneumatic CP6768EX-P18D Impact Wrench delivers smooth operation and superior durability. It is compact, lightweight and powerful 3/4" industrial impact wrench ideal for intensive usages. It features Twin hammer in oil bath and steel clutch housing for improved performance and long life. It is Dust-proof (IP6) and ATEX certified and made to last with extremely durable steel motor. With 1290 ft. lbs - 1750 Nm of maximum torque in reverse, this impact wrench provides full power, and a working torque range of 290 to 1030 ft./lbs. This product weighs 9.8 lbs, measures 10 inches long, and has a 3/4-inch output drive.

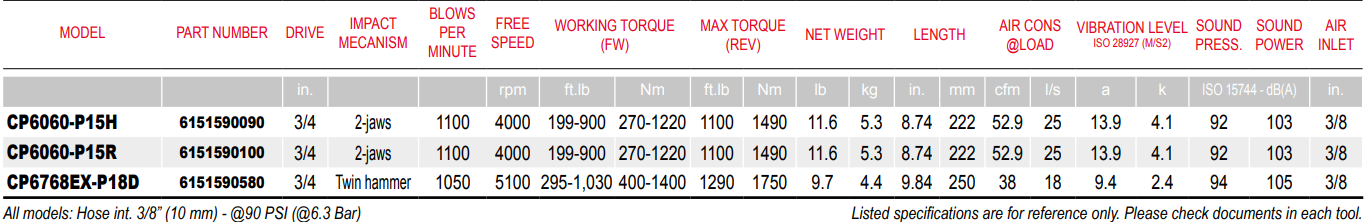

Type: Impact Wrench | Drive Size (in.): 3/4 | Impact Mecanism: Twin hammer | Blows Per Minute (BPM): 1050 | Free Speed (RPM): 5100 | Working Torque Range (fwd) (Nm): 400-1400 | Max Reverse Torque (ft-lbs): 1290 | Max Reverse Torque (Nm): 1750 | Length (in.): 9.84 | Length (mm): 250 | Air Consumption @ Load (CFM): 38 | Air Consumption @ Load (l/s): 18 | Vibration Level (a): 9.4 | Vibration Level (k): 2.4 | Sound Pressure (dbA): 94 | Sound Power (dbA): 105 | Air Inlet Size (in.): 3/8 | Min Hose Size (in.): 3/8 | Min Hose Size (mm): 10
|
Features:
Benefits:
|
 |
Looking for more information about Chicago Pneumatic Balancer? Click here to view the Catalog.
For help selecting the correct Chicago Pneumatic Balancers for your assembly application, call (800) 608-5210 or email info@intlairtool.com
