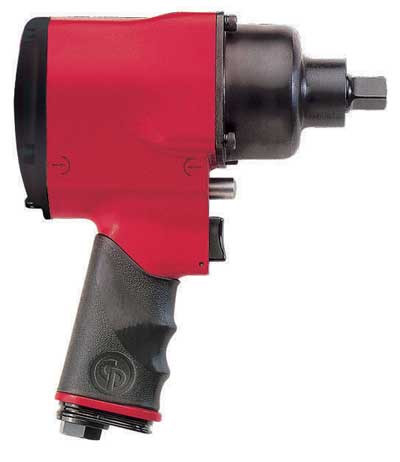

Chicago Pneumatic CP6500-RS Heavy-Duty Impact Wrench | 1/2" Drive | 627 (ft.-lb.) Max Torque | 6400 RPM

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Chicago Pneumatic

Chicago Pneumatic CP6500-RS Heavy-Duty Impact Wrench | 1/2" Drive | 627 (ft.-lb.) Max Torque | 6400 RPM

List Price: $599.44
$479.55
(You save $119.89 )
Availability:
Usually Ships Within 4 to 6 Weeks of Order | Contact Customer Service for Details
SKU:
T025214
Shipping:
Calculated at Checkout
Weight:
5.80 LBS
Condition:
New
Adding to cart… The item has been added
Description


The Chicago Pneumatic CP6500-RS Impact Wrench delivers smooth operation and extended durability. it is a compact, easy to maintain and powerful 1/2" industrial impact wrench with Pin-type socket retainer, ideal for Industrial Maintenance & Production applications. It features a Twin hammer clutch with oil bath for improved performance and compact 3-part construction for easy maintenance. It features Aluminum body and steel clutch housing. It offers great control with 4 settings regulator and One-hand reverse. The ergonomic handle has rubber grip and offers a superior operator comfort and control even on high torque. With 627 ft. lbs - 850 Nm of maximum torque in reverse, this impact wrench provides full power, and a working torque range of 170-680 ft. lbs. This product weighs 5.8 lbs, measures 7 inches long, and has a 1/2-inch output drive.

Type: Impact Wrench | Drive Size (in.): 1/2 | Impact Mecanism: Twin hammer | Blows Per Minute (BPM): 1320 | Free Speed (RPM): 6400 | Working Torque Range (ft-lbs): 125-502 | Working Torque Range (fwd) (Nm): 170-680 | Max Reverse Torque (ft-lbs): 627 | Max Reverse Torque (Nm): 850 | Length (in.): 7.01 | Length (mm): 178 | Air Consumption @ Load (CFM): 25 | Air Consumption @ Load (l/s): 11.8 | Vibration Level (a): 8 | Vibration Level (k): 2.5 | Sound Pressure (dbA): 96 | Sound Power (dbA): 107 | Air Inlet Size (in.): 1/4 | Min Hose Size (in.): 3/8 | Min Hose Size (mm): 10

Features:

  • 1/2" industrial impact wrench with Pin-type socket retainer
  • Twin hammer clutch with oil bath
  • Aluminum body and steel clutch housing
  • Regulator 4 settings and One-hand reverse
  • Comfortable handle with rubber grip

Benefits:

  • Best performer for Industrial Maintenance and Production applications
  • Operator comfort and control even on high torque
  • Extremely robust for tough environments
  • Compact 3-part construction for easy maintenance

industrial-tools-parts-breakdown.pngLooking for more information about Chicago Pneumatic Grinder? Click here to view the Catalog.

For help selecting the correct Chicago Pneumatic Grinders for your assembly application, call (800) 608-5210 or email info@intlairtool.com

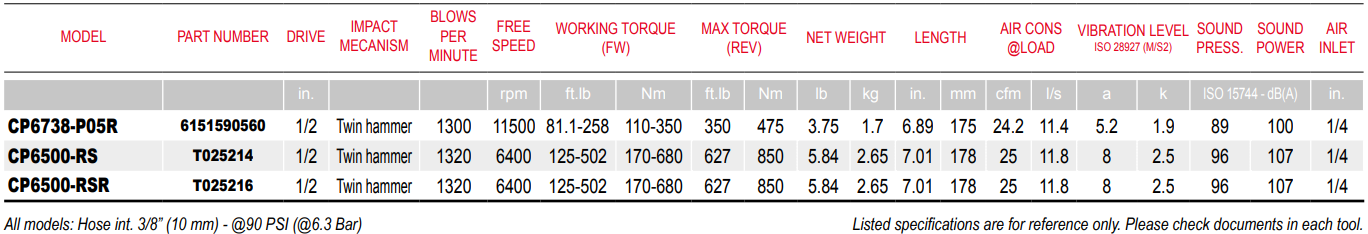

Specifications
Type:
Impact Wrench
Drive Size (in.):
1/2
Impact Mecanism:
Twin hammer
Blows Per Minute (BPM):
1320
Free Speed (RPM):
6400
Working Torque Range (ft-lbs):
125-502
Working Torque Range (fwd) (Nm):
170-680
Max Reverse Torque (ft-lbs):
627
Max Reverse Torque (Nm):
850
Length (in.):
7.01
Length (mm):
178
Air Consumption @ Load (CFM):
25
Air Consumption @ Load (l/s):
11.8
Vibration Level (a):
8
Vibration Level (k):
2.5
Sound Pressure (dbA):
96
Sound Power (dbA):
107
Air Inlet Size (in.):
1/4
Min Hose Size (in.):
3/8
Min Hose Size (mm):
10
Warranty Information
Chicago Pneumatic warrants this tool to be free of defects in materials and workmanship for the period of one year
