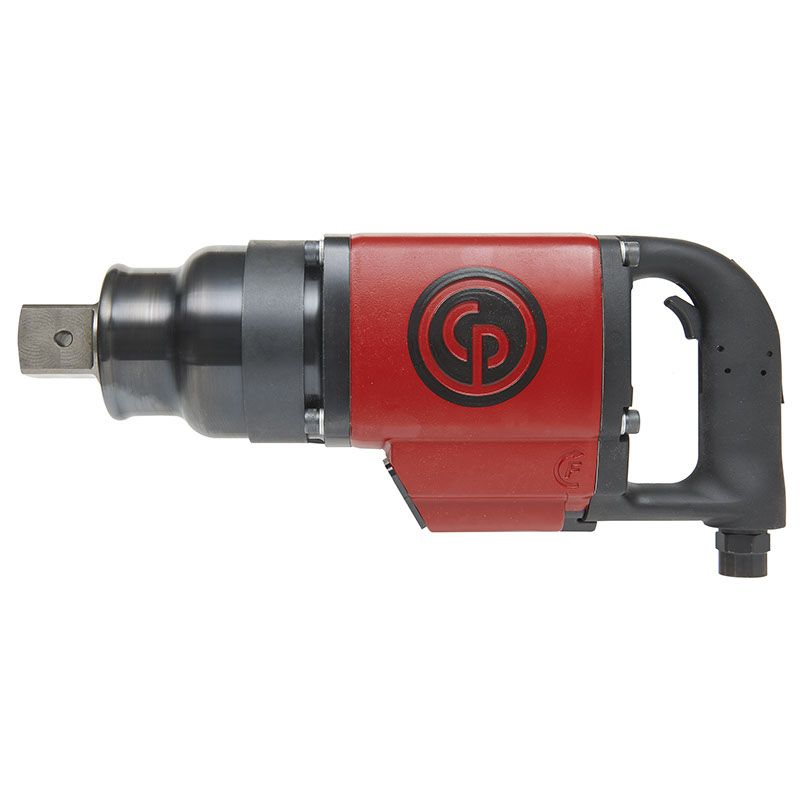

Chicago Pneumatic CP6120-D35H Industrial Impact Wrench | 1-1/2" Drive | 3600 (ft.-lbs.) Max Torque | 3500 RPM

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Chicago Pneumatic

Chicago Pneumatic CP6120-D35H Industrial Impact Wrench | 1-1/2" Drive | 3600 (ft.-lbs.) Max Torque | 3500 RPM

List Price: $6,806.01
$5,444.81
(You save $1,361.20 )
Availability:
Usually Ships Within 4 to 6 Weeks of Order | Contact Customer Service for Details
SKU:
6151590120
Shipping:
Calculated at Checkout
Weight:
43.13 LBS
Condition:
New
Adding to cart… The item has been added
Description

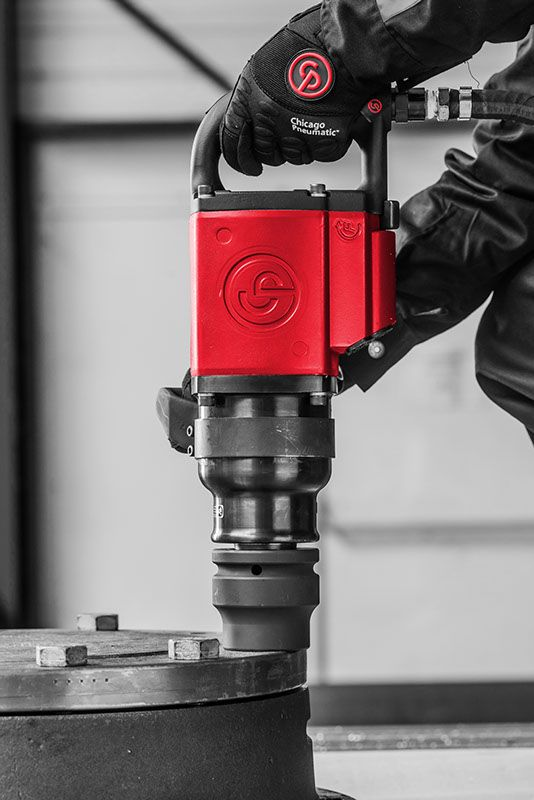

Chicago Pneumatic CP6120-D35H Industrial Impact Wrench is a rugged, high-performance tool engineered for the toughest industrial bolting applications, delivering an impressive 3600 ft-lbs of maximum torque for fast and reliable tightening or loosening of heavy fasteners. Built with a durable 1-1/2" drive, it handles large sockets and high-load tasks commonly found in mining, construction, heavy equipment maintenance, and industrial assembly. Its efficient 3500 RPM motor ensures strong power delivery with smooth operation, while the dual-hammer mechanism provides consistent impact energy under continuous use. Designed for durability, comfort, and control, the CP6120-D35H features a robust housing and ergonomic grip suited for demanding, long-duration jobs. This impact wrench is ideal for professionals who require maximum torque, reliability, and long service life in harsh working environments.

Type: Impact Wrench | Drive Size (in.): 1-1/2 | Impact Mechanism: 2-jaws | Blows Per Minute (BPM): 960 | Free Speed (RPM): 3500 | Working Torque Range (fwd) (Nm): 815-2710 | Max Reverse Torque (ft-lbs): 3600 | Max Reverse Torque (Nm): 4880 | Length (in.): 16.54 | Length (mm): 420 | Air Consumption @ Load (CFM): 60 | Air Consumption @ Load (l/s): 28.3 | Vibration Level (a): 21.8 | Vibration Level (k): 11.8 | Sound Pressure (dbA): 97 | Sound Power (dbA): 108 | Air Inlet Size (in.): 1/2 | Min Hose Size (in.): 3/8 | Min Hose Size (mm): 10

Features:

  • A reliable 2-jaw clutch mechanism can be set for hard and soft joint applications
  • 2-jaw clutch minimizes vibration sensation
  • Robust steel clutch housing guarantees durability
  • High progressive max torque for smooth operation
  • Durable lightweight aluminium body offers operator comfort

industrial-tools-parts-breakdown.pngLooking for more information about Chicago Pneumatic Wrench? Click here to view the Catalog.

For help selecting the correct Chicago Pneumatic Wrenches for your assembly application, call (800) 608-5210 or email info@intlairtool.com

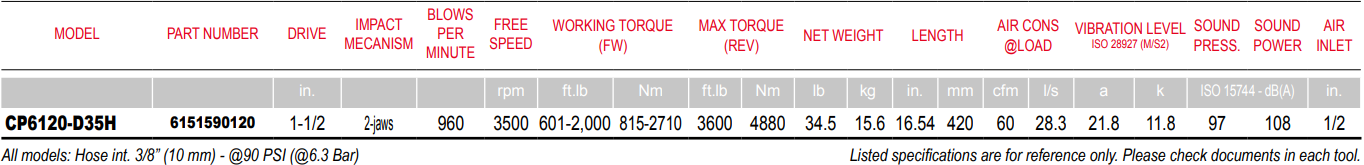

Specifications
Type:
Impact Wrench
Drive Size (in.):
1-1/2
Impact Mechanism:
2-jaws
Blows Per Minute (BPM):
960
Free Speed (RPM):
3500
Working Torque Range (fwd) (Nm):
815-2710
Max Reverse Torque (ft-lbs):
3600
Max Reverse Torque (Nm):
4880
Length (in.):
16.54
Length (mm):
420
Air Consumption @ Load (CFM):
60
Air Consumption @ Load (l/s):
28.3
Vibration Level (a):
21.8
Vibration Level (k):
11.8
Sound Pressure (dbA):
97
Sound Power (dbA):
108
Air Inlet Size (in.):
1/2
Min Hose Size (in.):
3/8
Min Hose Size (mm):
10
Warranty Information
Chicago Pneumatic 1-1/2" Impact Wrenches have a one year manufacturers warranty against defects in materials and workmanship. Consumible parts such as bearings and motor vanes are not covered.
