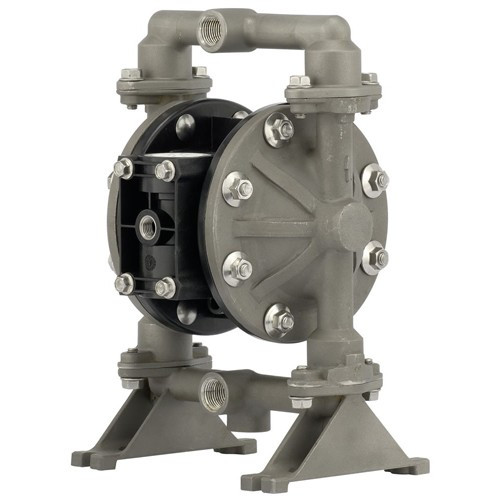

ARO PD05R-AAS-PTT-B Compact Diaphragm Pump is a rugged and efficient fluid-handling solution designed for industrial and commercial applications. Featuring a 1/2" metallic construction, this pump combines strength and durability with excellent resistance to wear, making it suitable for a wide range of liquids, including water, chemicals, and industrial solutions. With a maximum flow rate of 12 GPM, the PD05R model delivers reliable performance for fluid transfer, circulation, and dispensing tasks. The inclusion of PTFE ball material enhances chemical compatibility and long-lasting operation, even when handling aggressive or corrosive media. Compact in size but robust in performance, this diaphragm pump offers smooth, consistent flow and dependable priming, ensuring efficient operation in both intermittent and continuous duty cycles.
Type: Diaphragm Pump | Maximum Flow: 12 GPM / 45.4 LPM | Ratio: 1:1 | Fluid Inlet/Outlet: 1/2 - 14 N.P.T.F. - 1 | Suspended Solids Max Dia. in. (mm): 0.9375 (2.4) | Center Section Material: Polypropylene | Manifold Material: Aluminum | Hardware Material: Stainless steel | Seat Material: Polypropylene | Ball Material: PTFE | Diaphragm Material: PTFE / Santoprene
Features:
- Efficiency - Simul-Shift valve provides ultra-positive, reliable shift signal
- Reliability - ARO's patented 'Unbalanced' air valve ensures no-stall operation
- Versatility - Center, End, and Dual Inlet / Outlet manifold configurations for your application needs
- Environmentally Sound - Bolted construction for leak-free fluid handling
- Serviceability - Ease of service through modular design
Made in USA:
Looking for more information about Ingersoll Rand ARO Diaphragm Pump? Click here to view the Catalog
For help selecting the correct Ingersoll Rand ARO Diaphragm Pumps for your assembly application, call (800) 608-5210 or email info@intlairtool.com
