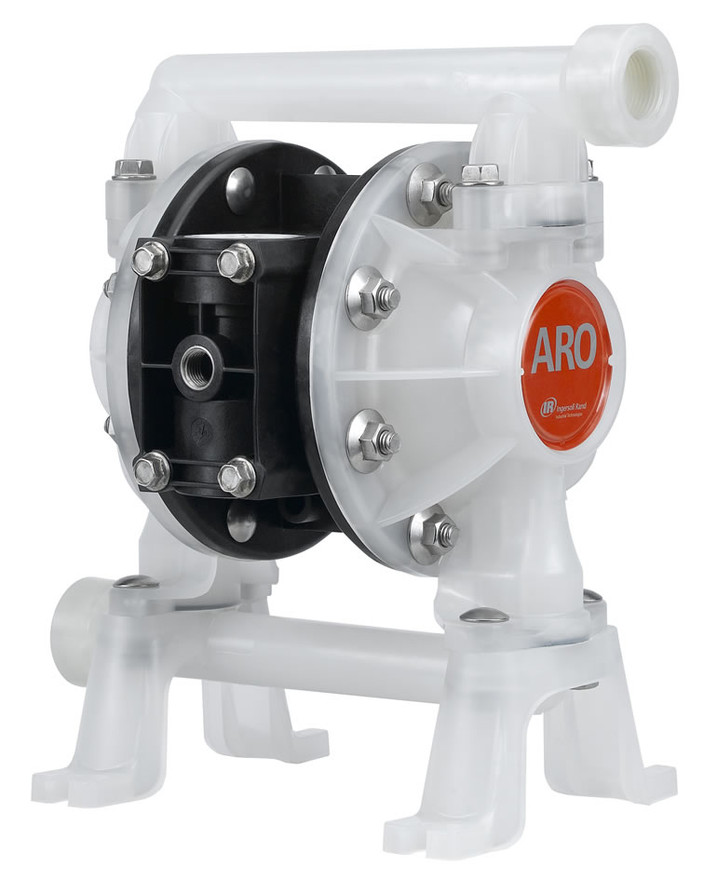

ARO PD05P-ARS-PCC-B Compact Diaphragm Pump | 1/2" Non-Metallic | 14.4 Maximum GPM | Hytrel Ball Material

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Ingersoll Rand

ARO PD05P-ARS-PCC-B Compact Diaphragm Pump | Pro Series | 1/2" Non-Metallic | 14.4 Maximum GPM | Hytrel Ball Material

List Price: $968.00
$838.93
(You save $129.07 )
Availability:
Available To Order From Supplier
SKU:
PD05P-ARS-PCC-B
Shipping:
Calculated at Checkout
Weight:
6.00 LBS
Condition:
New
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description


ARO PD05P-ARS-PCC-B Compact Diaphragm Pump is a durable and versatile fluid handling solution ideal for industrial, chemical, and general-purpose applications. Designed with a 1/2" non-metallic construction, this compact diaphragm pump offers excellent chemical compatibility and corrosion resistance, making it suitable for a wide range of fluids, including solvents, water-based solutions, and light slurries. With a maximum flow rate of 14.4 GPM, the PD05P delivers reliable and efficient pumping performance in a compact footprint. Its Hytrel ball material enhances chemical resistance and provides dependable sealing performance, while the robust diaphragm design ensures smooth operation with minimal pulsation. Engineered for ease of use and maintenance, this ARO diaphragm pump features simple installation and serviceability, making it a practical choice for manufacturing lines, fluid transfer systems, and maintenance operations.

Type: Diaphragm Pump | Max GPM (LPM): 14.4 GPM / 54.5 LPM | Ratio: 1:1 | Air Inlet (Female): 1/4 - 18 PTF SAE Short | Suspended Solids Max Diameter in. (mm): 0.09375 (2.4) | Manifold Material: Polypropylene (multiple port) | Center Section: Polypropylene | Seat: Polypropylene | Ball: Hytrel | Diaphragm Material: Hytrel

Features:

  • ARO has the world's best selling 1/2" ported diaphragm pump.
  • Designed to meet your OEM application needs.
  • Efficiency - Motor design delivers optimum air efficiency
  • Reliability - ARO's patented 'Unbalanced' air valve ensures no-stall operation
  • Versatility - Center, End, Dual Inlet / Outlet, and Swivel Top manifold configurations to fit your specific application
  • Environmentally Sound - Bolted construction for leak-free fluid handling
  • Serviceability - Ease of service through modular design

Made in USA: usa-flag.gif


industrial-tools-parts-breakdown.pngLooking for more information about the Ingersoll Rand ARO Diaphragm Pump? Click here to view the Catalog

For help choosing the correct Ingersoll Rand ARO Diaphragm Pumps for your application, please call (800) 608-5210 or email info@intlairtool.com

Specifications
Type:
Diaphragm Pump
Ratio:
1:1
Max (gpm):
14.4
Max (l/mn):
54.5
Displacement Per Cycle (Gallons):
0.039
Displacement Per Cycle (Liters):
0.15
Air Inlet (Female):
1/4 - 18
Max Operating Pressure (PSI):
100
Max Operating Pressure (bar):
6.9
Suspended Solids Max Diameter (in.):
3/32
Suspended Solids Max Diameter (mm):
2.4
Max Dry Suction Lift (ft.):
15.0
Max Dry Suction Lift (m):
4.5
Sound Level (dbA):
75.0
Warranty Information
One year warranty against defects in materials and workmanship.
