Allegro 9525-01 20" Axial Explosion-Proof Metal Blower | 1/2 HP | 115V-230V AC

Allegro 9525-01 20" Axial Explosion-Proof Metal Blower | 1/2 HP | 115V-230V AC | Explosion-Proof Ventilation for Hazardous Environments

Ensure safe and effective ventilation in hazardous environments with the Allegro 9525-01 20" Axial Explosion-Proof Metal Blower. Designed specifically for use in Class I, Group D, and Class II, Groups F & G atmospheres, this powerful blower provides high-capacity airflow while meeting strict safety requirements. Equipped with a durable explosion-proof motor (1/2 HP) and a corrosion-resistant metal housing, this blower is built to perform in the most demanding industrial applications - including refineries, chemical plants, tank cleaning, and confined space entry.

The Allegro 9525-01 is your trusted choice when safety, airflow, and performance cannot be compromised.

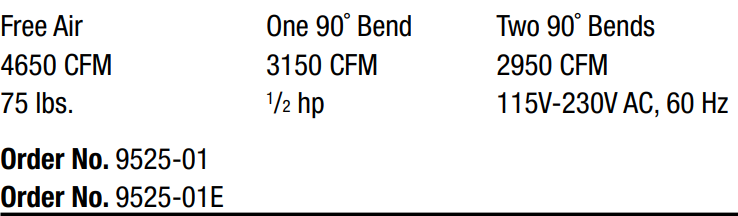

Type: Axial Blower | Motor (HP): 1/2 | CFM: 4650 | CFM One 90° Bend: 3150 | CFM Two 90° Bend: 2950 | Electrical Current: 115V-230V AC, 60 Hz | Configuration: EX | Housing: Metal | Design: Axial | Blower Phase: Single | Diameter (in.): 20

Features:

• 1/2 HP
• Available in US and International wiring configurations
• Certified to CSA Standard C22.2 No 113.
• Epoxy powder-coated in "safety orange"
• 16-gauge cold rolled steel housing
• Integrated carrying handles
• Meets Class I, Division 1 and 2, Groups C & D, Class II Division 1 and 2 Groups F & G.
• Anti-Static glass reinforced polyamide (PAGAS) three blade fan with aluminum hub
• Made in USA
• Interchangeable flange
• Interchangeable flange for intake or exhaust side mounting
• Blower delivers high output for drawing or pushing air for added worker convenience
• Integrated carry handles for easy transport to work site
• The durable and tough metal housing can withstand the harshest of work conditions

Application:

• Construction
• Industrial
• Manufacturing
• Confined Space

Looking for more information about Walter Axial Blowers? Click here to view the Catalog

For help choosing the correct Walter Surface Technologies Axial Blower for your application, please call (800) 608-5210 or email info@intlairtool.com
