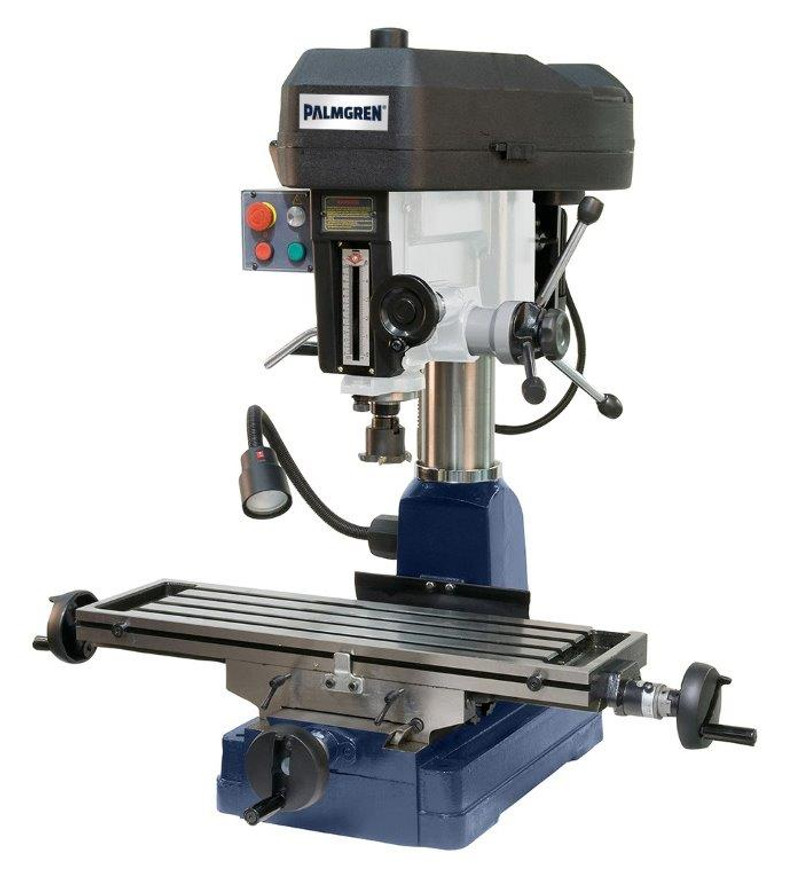

Palmgren 9680113 Mill and Drill Machine | 1-1/2' HP | 150 - 3,000 RPM | 16" Swing

Palmgren 9680113 Mill/Drill Machine combines the versatility of a drill press with the precision of a milling machine, making it an ideal choice for small shops and one-off applications. With a 16" swing and a 1-1/2 HP motor, this machine delivers robust performance for drilling, milling, slotting, and boring tasks. Palmgren 9680113 Mill/Drill Machine offers a compact yet powerful solution for a wide range of machining tasks, combining durability and precision in a user-friendly design.

Type: Mill and Drill Machine | Motor (HP): 1-1/2 | Column Diameter (in.): 4-1/2 | Draw Bar Thread (in.): 7/16 - 20 | Drilling Capacity Cast Iron (in.): 1-1/2 | Max Milling Capacity Cutter Head (in.): 3 | Max Milling Capacity End Mill Cutter (in.): 3/4 | Milling Machines Type: Gear Head | Overall Dimensions (in.): 29 x 32 x 45 | Phase: Single | Quill Diameter (in.): 3 | Quill Travel (in.): 5 | Speed Range (RPM): 150 - 3,000 | Spindle Taper: R8 | Swing (in.): 16 | Voltage: 115/230 | Y-Axis (in.): 7

Features:

• 16" Swing
• Fully enclosed R-8 spindle has heavy-duty tapered thrust bearings at top and bottom of quill
• Large 32-3/8 x 9-1/2" table has dovetail ways with adjustable gibs and bronze lead screw nuts for accurate and rigid table positioning
• Table has four 5/8" T-slots, zero-setting handwheel dials with ,001" graduations, adjustable stops for longitudinal feed and cross feed way cover
• 12 Speeds: 150 to 3000 RPM
• Adjustable depth stops with scale
• Draw Bar (7/16"-20) and Way Cover
• Spindle Stroke 5"
• Work Light
• Includes: Drill Chuck Arbor, 1/2" Chuck and Key, Face Mill Arbor, 3" Face Mill, R8/MT3 Adaptor, 6-pc R8 Collet Set

Looking for more information about Palmgren Mill and Drill Machines? Click here to view the Catalog.

Need help selecting the correct Palmgren Mill and Drill Machine for your application? Please call (800) 608-5210 or email info@intlairtool.com
